Explore the ET10

The ET10 combines strong towing power with compact dimensions and lightweight design, making it highly maneuverable in tight spaces. With a towing capacity of 1000 kg, pneumatic wheels for excellent passability, and adjustable tiller height for operator comfort, it ensures reliable performance for diverse applications. Its built-in 24V/50Ah battery with internal charger adds convenience for daily use
1.Compact and lightweight design

With a service weight of only 98 kg and a wheelbase of 315 mm, the ET10 is easy to maneuver, store, and operate, making it suitable for confined spaces and frequent repositioning tasks.

2.Reliable towing capacity

Capable of towing loads up to 1000 kg with a maximum drawbar pull of 650 N, the ET10 provides strong traction and ensures smooth goods movement even on gentle slopes.

3.Operator comfort and control

The adjustable tiller height, ergonomic “hands big handle head,” and mechanical steering make operation comfortable for all users. Electromagnetic brakes enhance control and safety during daily use.

4.Efficient battery and charging system

Equipped with a 24V/50Ah battery and internal 24V/8A charger, the ET10 eliminates downtime by allowing convenient charging at any available socket. Optional Li-ion upgrades or battery indicators with time functions further improve efficiency.

Application

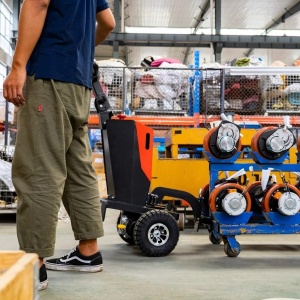

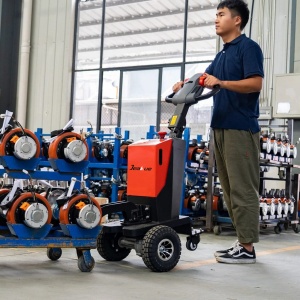

The ET10 is ideal for retailers, distribution platforms, medical facilities, and airports where short-distance goods transfer is frequent. Its differential mechanism and compact wheelbase of just 315 mm allow for excellent maneuverability in narrow corridors and confined areas. Capable of towing loaded carts on slopes up to 3°, it offers stable and safe transport of goods, while the lightweight 98 kg design makes it easy to handle and store.

About the ET10

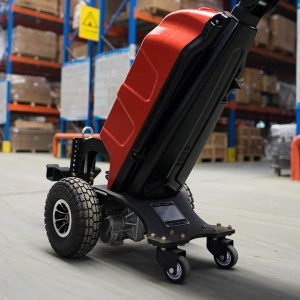

The ET10 sets a new benchmark in light-duty electric towing with its combination of efficiency, safety, and flexibility. Its pneumatic 250 mm front wheels and rubber drive wheels ensure smooth travel and superior grip, even on uneven surfaces. With a maximum towing force of 650 N and a travel speed of 5 km/h unloaded, it provides consistent productivity. Operators benefit from adjustable tiller height, intuitive mechanical steering, and electromagnetic braking for safety. Powered by a 24V/50Ah maintenance-free battery with a 24V/8A internal charger, the ET10 supports opportunity charging wherever a socket is available. Optional features such as solid front wheels, time-equipped battery indicators, and traction pins expand its adaptability. Compact, powerful, and operator-friendly, the ET10 is a practical solution for last-mile and indoor logistics.

FAQs

What is the load capacity of the ET10?

The ET10 is a compact and powerful electric towing tractor with a towing capacity of 1,000 kg. Despite its lightweight structure of just 98 kg, it delivers strong traction and stable towing performance, making it ideal for retail, medical, airport, and delivery applications.
How powerful and efficient is the drive system?

Equipped with a 0.4 kW DC traction motor and electromagnetic braking system, the ET10 ensures safe and efficient operation. It offers a maximum travel speed of 5 km/h and a maximum drawbar pull of 650 N, enabling smooth and reliable handling of goods across short to medium distances.
What type of battery does the ET10 use?

The ET10 runs on two 12V/50Ah batteries (24V total) and features a built-in 24V/8A charger for convenient plug-in charging. This configuration provides excellent runtime and flexibility, with the option to add a battery indicator with hour meter for efficient monitoring during extended shifts.
How maneuverable is the ET10 in tight spaces?

Designed for maximum flexibility with minimum volume, the ET10 features a short wheelbase of just 315 mm and a compact width of 520 mm, allowing it to maneuver easily in narrow aisles and crowded areas. Its adjustable tiller height ensures ergonomic comfort for operators of different heights.
What safety and comfort features does the ET10 offer?

The ET10 includes mechanical steering for simple control, pneumatic front tires for excellent traction and shock absorption, and rubber drive wheels for a smooth, stable ride. Its lightweight design and electromagnetic braking system ensure both operator safety and precise stopping during towing operations.

PRODUCT FEATURES

Load Capacity	1000Kg(2204.62lb)
Rated/Maximum traction	200/650N
Battery Voltage/Nominal Capacity	24V/50Ah lithium battery
Turning Radius	1000mm(39.37in)
Service weight	98kg(216.05lb)
Steering Design	Mechanical

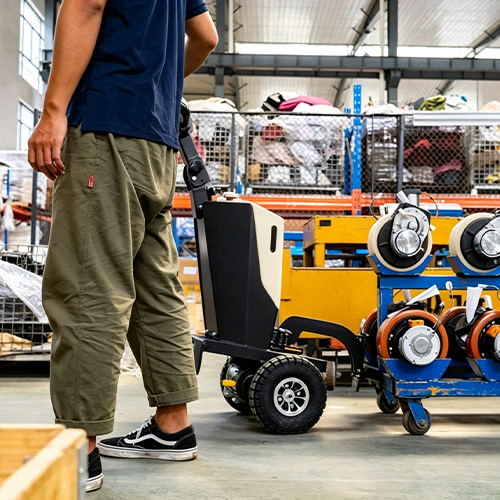

Light and Flexible JEAKUE 1 Ton Pedestrian Electric Tow Tractor
The overall volume of the vehicle is very small, with a weight of only 98KG. The reduction box adopts a differential structure, making the operation comfortable and flexible

JEAKUE 1 Ton Pedestrian Electric Tow Tractor

High Traction
Can pull 1000KG of goods to walk on a 3°slope;

JEAKUE 1 Ton Pedestrian Electric Tow Tractor

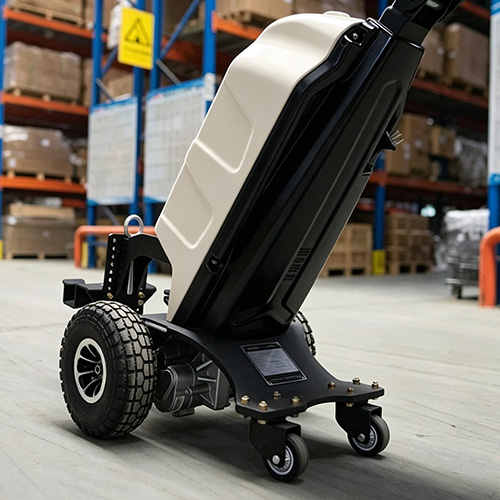

Passability Stable Operation and Good
Uses inflatable tires, making the whole vehicle have good shock absorption and not easy to slip. The wheel
diameter is 250MM, making the vehicle have very good passability;

JEAKUE 1 Ton Pedestrian Electric Tow Tractor

Convenient Charging
The vehicle body has a built – in charger, and can be charged wherever there is a socket;

JEAKUE 1 Ton Pedestrian Electric Tow Tractor

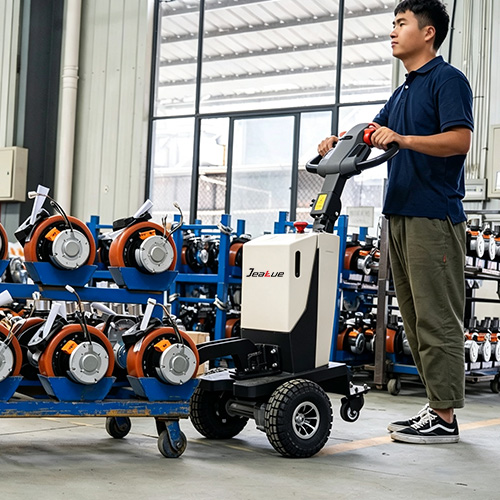

Comfortable Operation JEAKUE 1 Ton Pedestrian Electric Tow Tractor
The height of the handle can be adjusted to suit people of different heights, achieving the purpose of comfortable operation. JEAKUE 1 Ton Pedestrian Electric Tow Tractor
