Description

PRODUCT FEATURES

Load Capacity	1500Kg（3306.93 lb）
Fork Dimensions	1150/160/55mm(45.28 / 6.30 / 2.17 in)(lxexs)
Distance Between Fork-arms	685mm/560mm(26.97 in / 22.05 in)
Battery Voltage/Nominal Capacity	48V10Ah lithium battery
Turning Radius	1370mm(53.94 in)
Lift Height	105mm(4.13 in)
Steering Design	Mechanical
Service weight	95Kg(209.44 lb)
Product Color	Ivory/Red/Customization

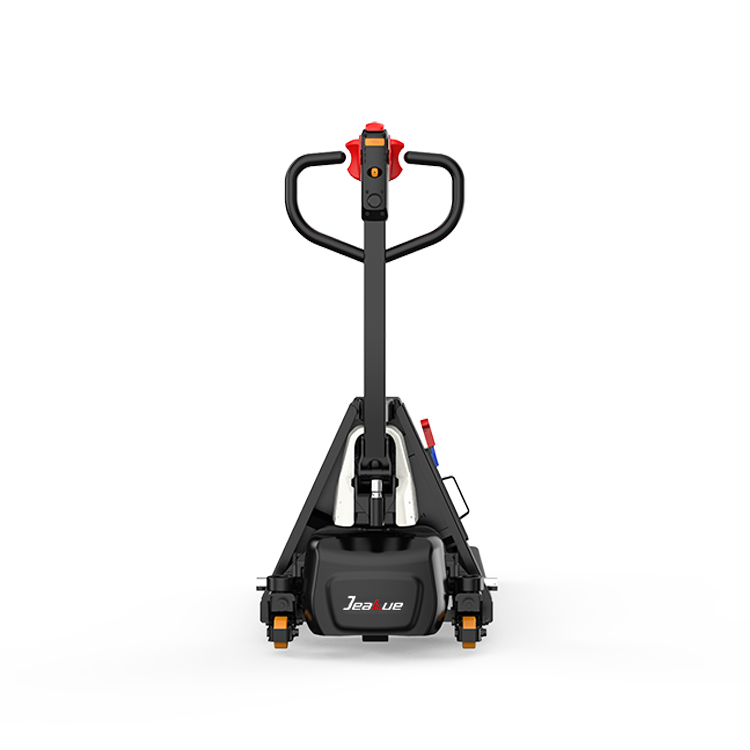

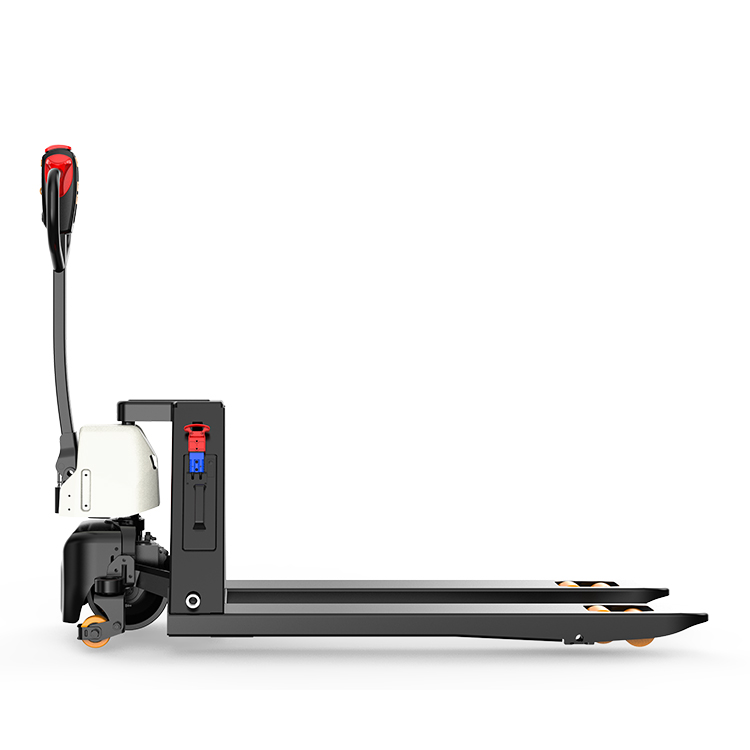

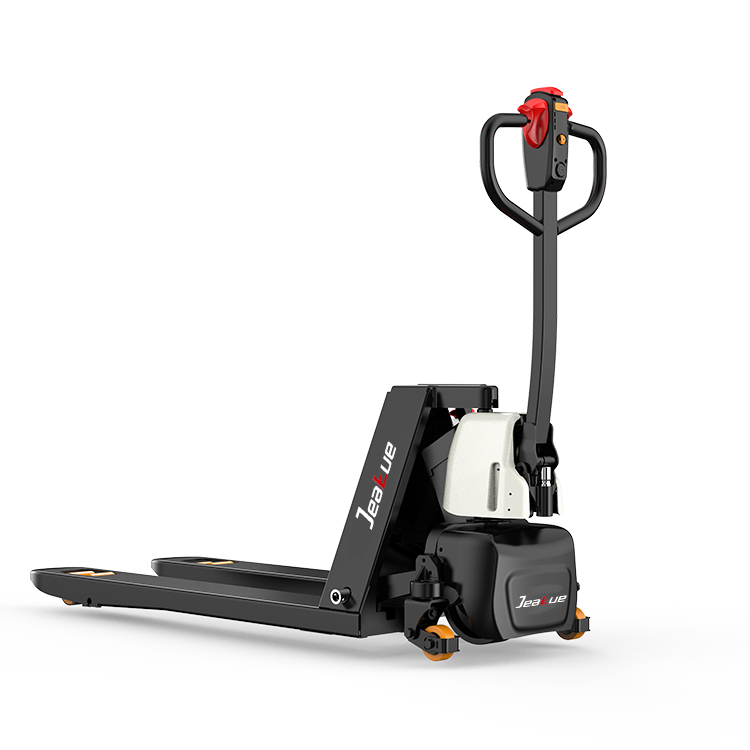

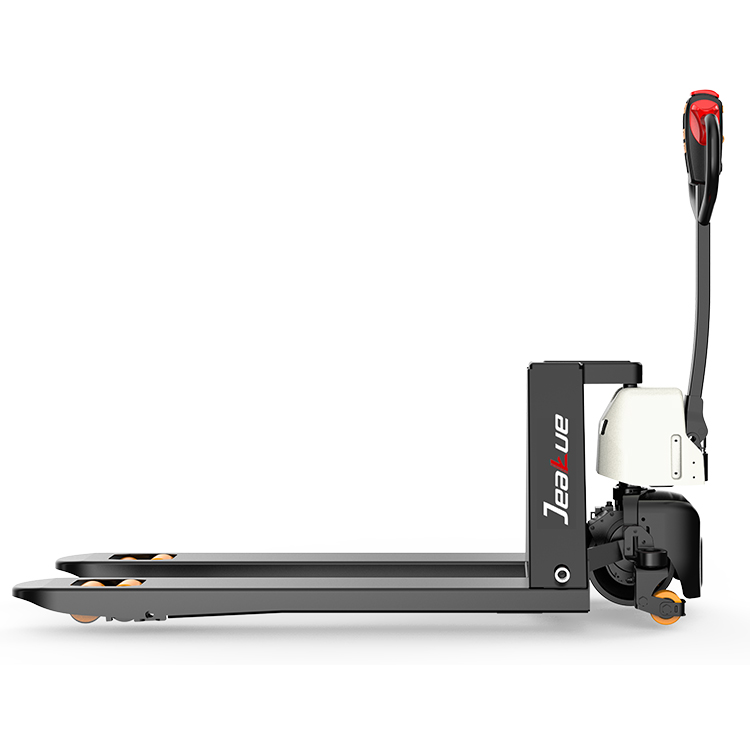

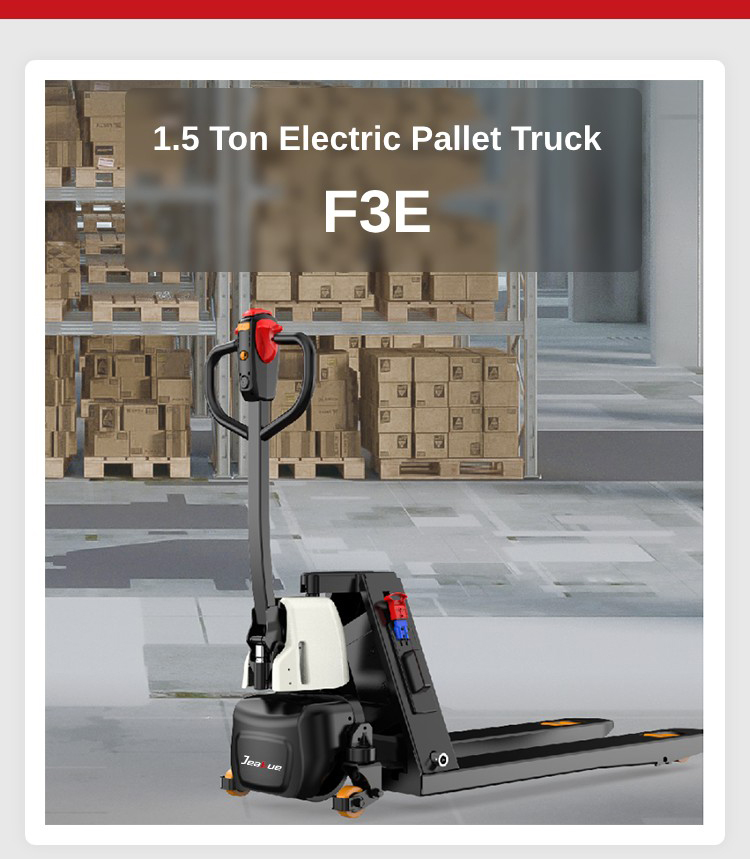

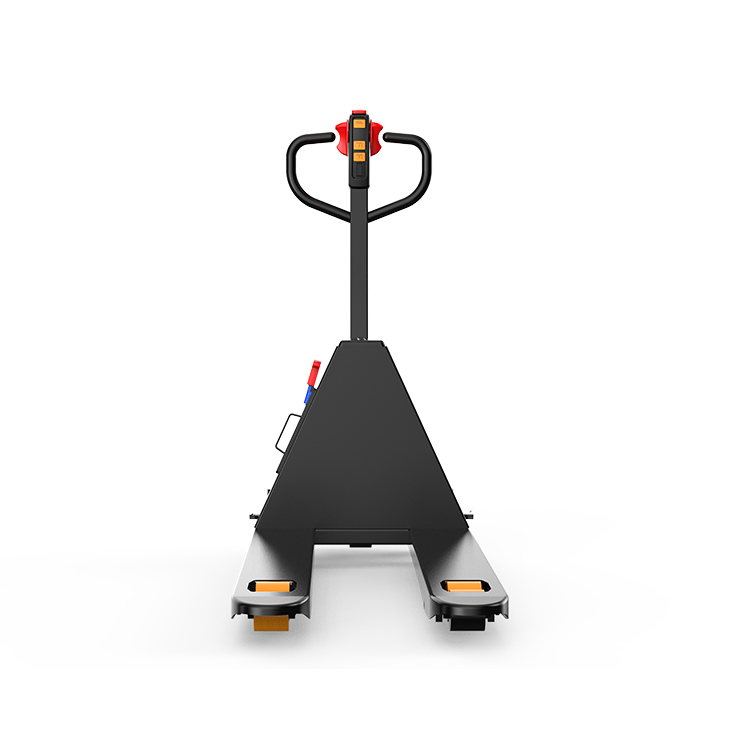

1.5 Ton Electric Pallet Truck F3E

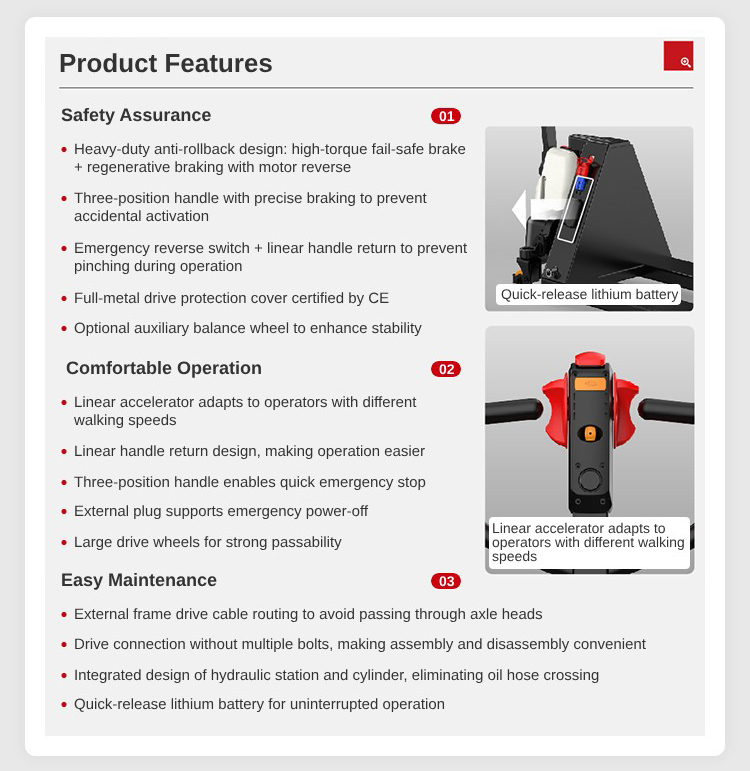

Product Features JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

01 Safety Assurance

Heavy-duty anti-rollback design: high-torque fail-safe brake + regenerative braking with motor reverse JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Three-position handle with precise braking to prevent accidental activation

Emergency reverse switch + linear handle return to prevent pinching during operation JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Full-metal drive protection cover certified by CE JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Optional auxiliary balance wheel to enhance stability

02 Comfortable Operation JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Linear accelerator adapts to operators with different walking speeds

Linear handle return design, making operation easier JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Three-position handle enables quick emergency stop

External plug supports emergency power-off JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Large drive wheels for strong passability

03 Easy Maintenance JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

External frame drive cable routing to avoid passing through axle heads

Drive connection without multiple bolts, making assembly and disassembly convenient JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Integrated design of hydraulic station and cylinder, eliminating oil hose crossing

Quick-release lithium battery for uninterrupted operation JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Quick-release lithium battery JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Linear accelerator adapts to operators with different walking speeds

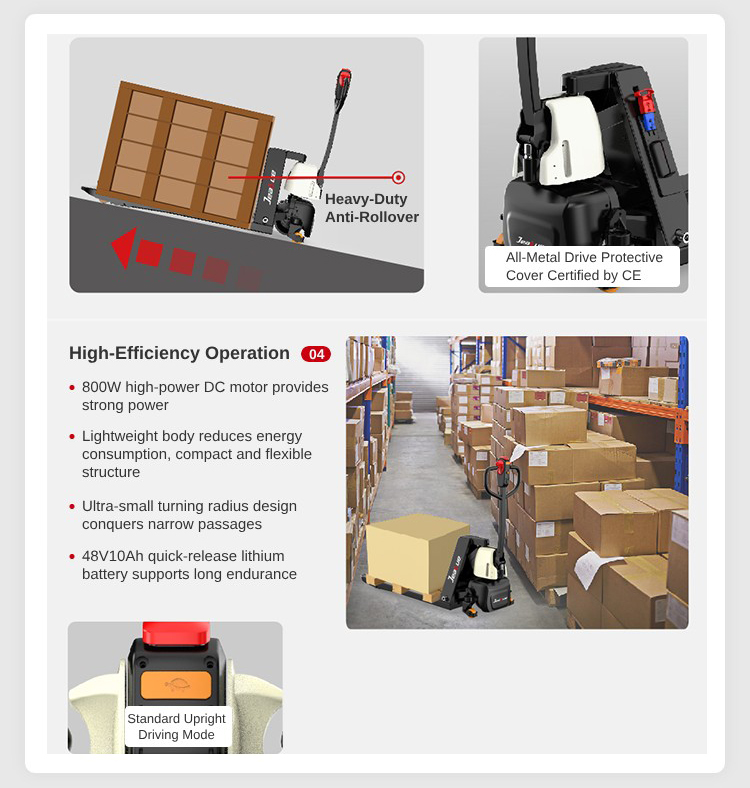

04 High-Efficiency Operation JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

800W high-power DC motor provides strong power

Lightweight body reduces energy consumption, compact and flexible structure JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Standard upright driving mode, suitable for operations in small spaces

Ultra-small turning radius design conquers narrow passages JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

48V10Ah quick-release lithium battery supports long endurance

Heavy-Duty Anti-Rollover JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

All-Metal Drive Protective Cover Certified by CE

Standard Upright Driving Mode JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

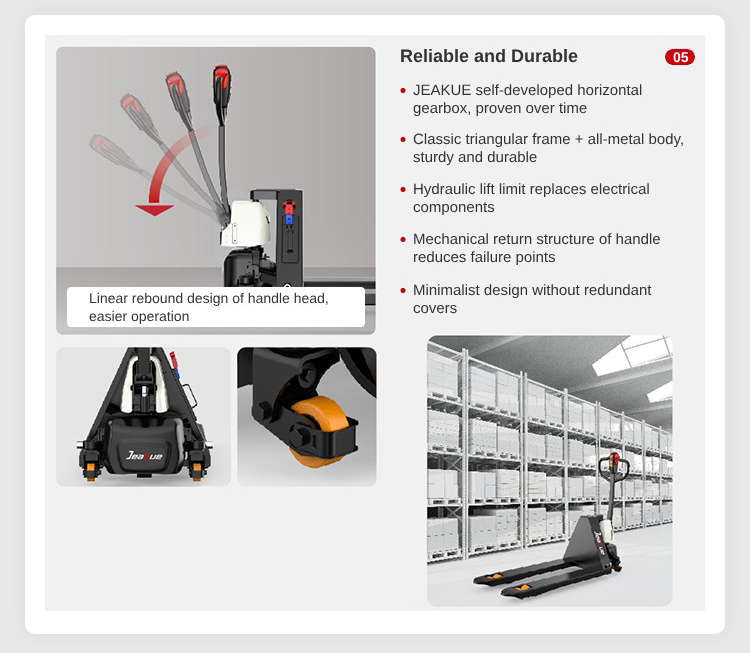

05 Reliable and Durable

JEAKUE self-developed horizontal gearbox, proven over time JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Classic triangular frame + all-metal body, sturdy and durable

Hydraulic lift limit replaces electrical components JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Mechanical return structure of handle reduces failure points

Minimalist design without redundant covers JEAKUE 1.5 Ton Pedestrian Lithium Battery Pallet Truck-F3E

Linear rebound design of handle head, easier operation
