Description

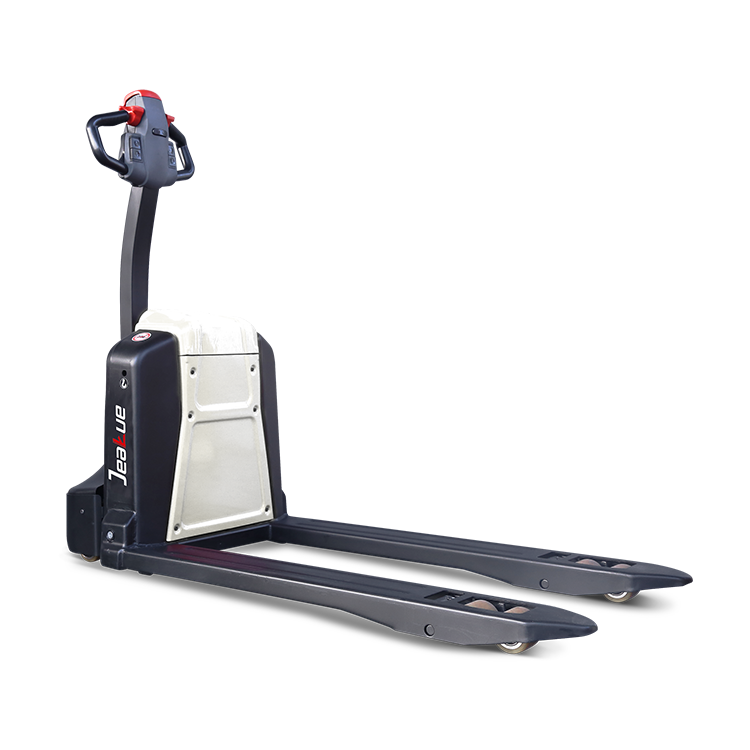

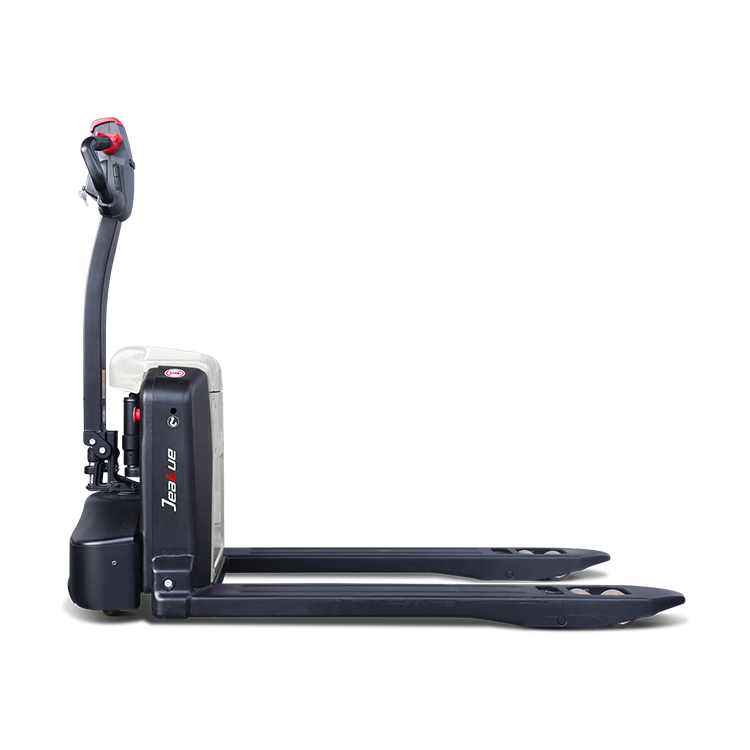

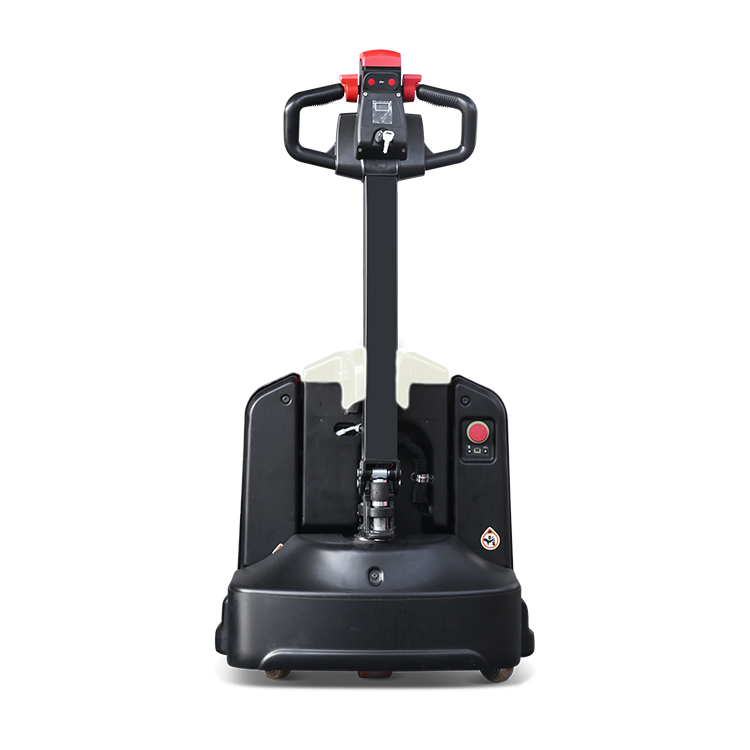

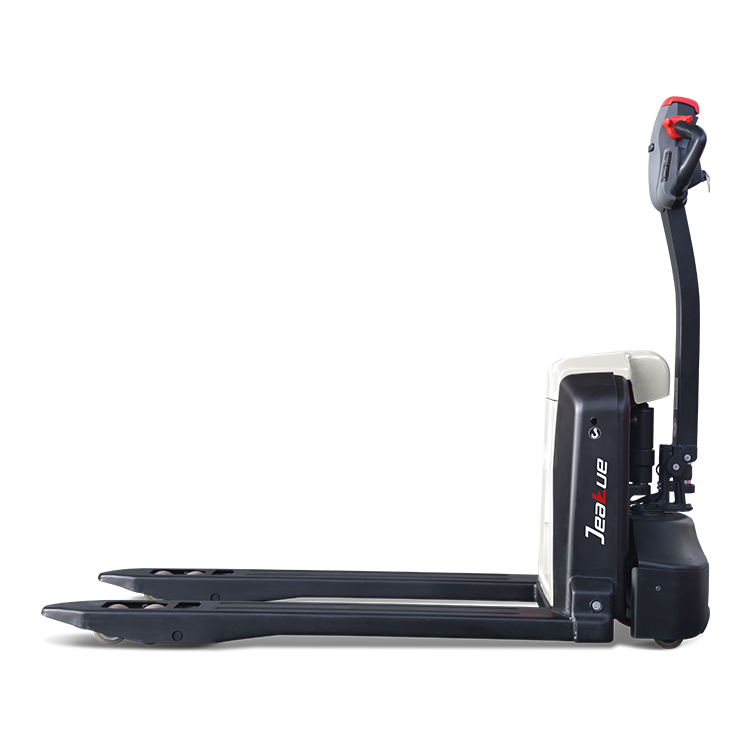

Explore the 154Z

The 154Z combines compact dimensions with enhanced stability, thanks to its industrial floating stabilizing wheels. With a 1.5-ton load capacity, a 24V/30Ah removable Li-ion battery, and integrated fast charger, it provides a reliable and convenient solution for daily handling tasks. The battery’s protective metal cover and plug-in design ensure both safety and ease of use.
1.Industrial stabilizing wheels

Equipped with floating stabilizing wheels as standard, the 154Z provides maximum stability and smooth passability. This feature enhances operator confidence, especially when handling loads on slightly uneven floors.

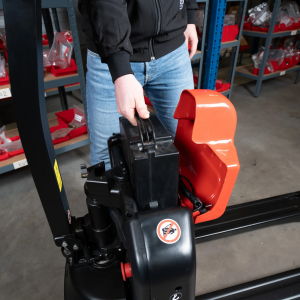

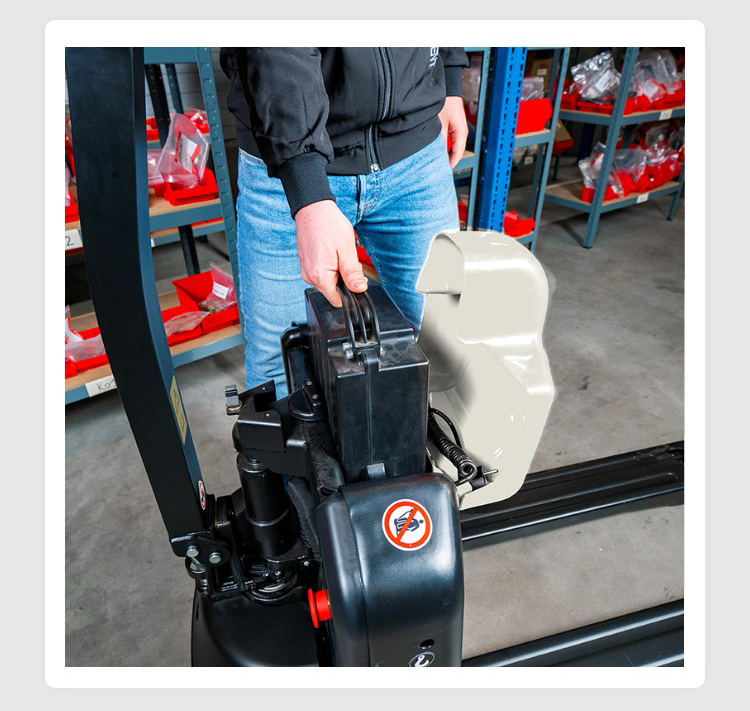

2.Removable Li-ion battery

A 24V/30Ah Li-ion plug-in battery with integrated BMS powers the truck. Its removable design with metal protection cover ensures safety, fast swapping, and reliable performance throughout the shift.

3.Compact and lightweight

With just 400 mm fork face length and a service weight of 160 kg, the 154Z is easy to maneuver in narrow aisles and confined spaces, while still handling up to 1.5 tons of load.

4.Reliable drive system

The 154Z adopts the proven drive system from the ET, delivering consistent power and durability. It also ensures gradeability up to 10% even with a 1000 kg load.

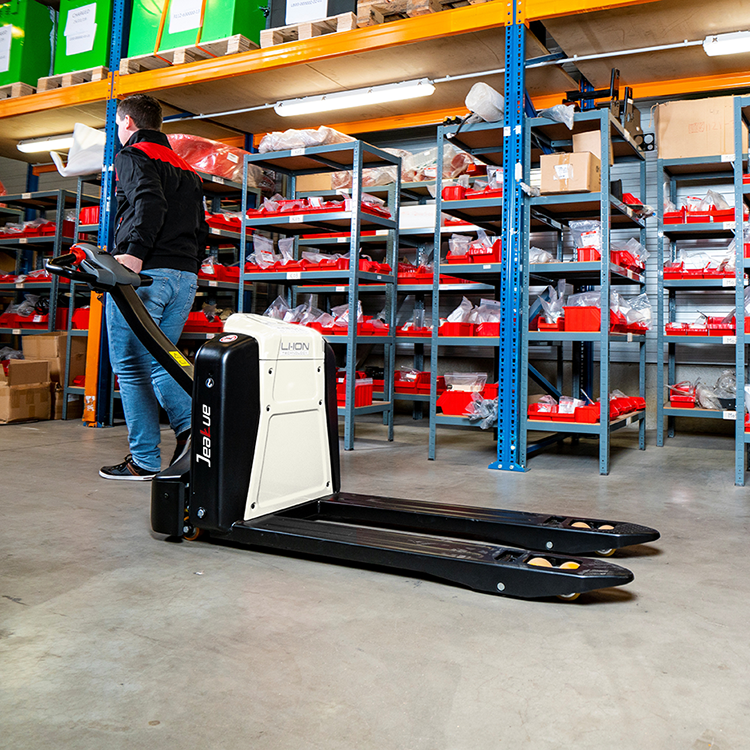

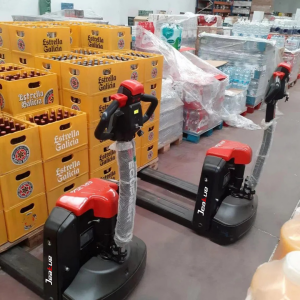

Application

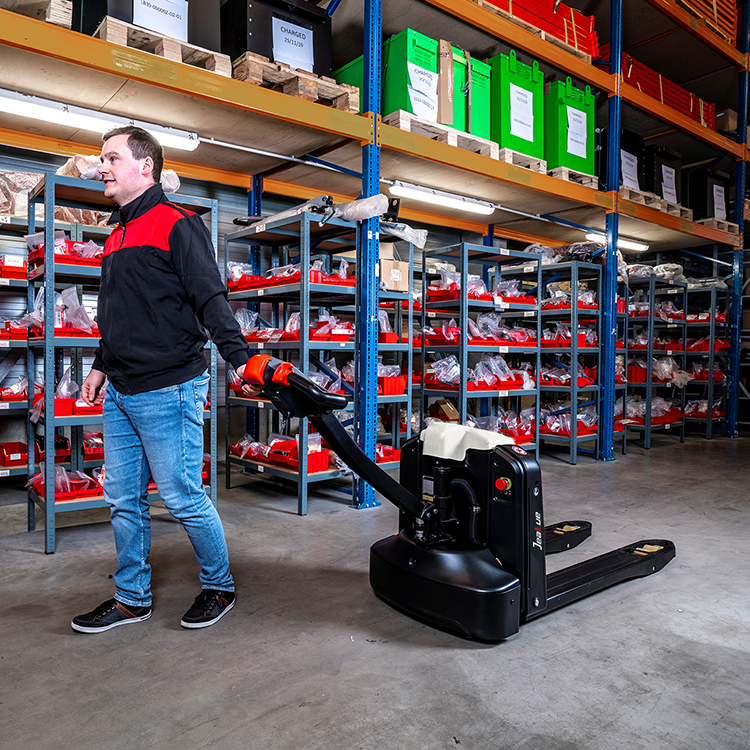

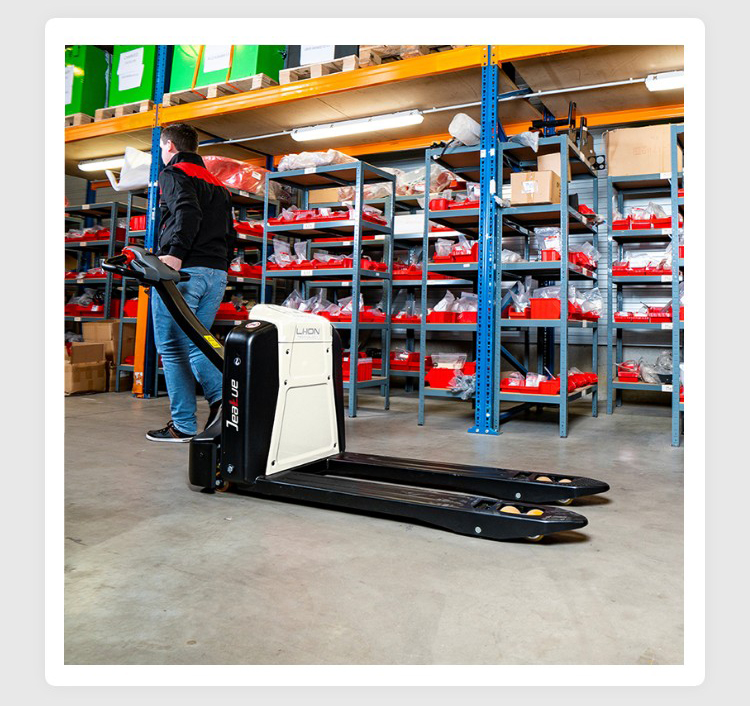

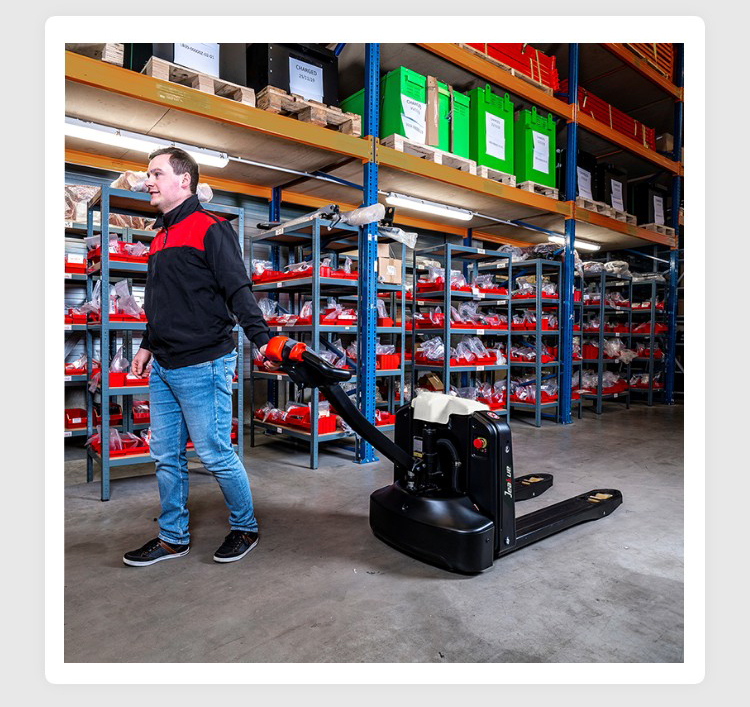

The 154Z is ideal for warehouses, retail, and logistics centers requiring stability and maneuverability in narrow spaces. Its small chassis (400 mm fork face length) and lightweight design (160 kg) make it perfect for confined environments, while the stabilizing wheels allow safe load handling even on uneven surfaces. With optional fork dimensions and charger configurations, the 154Z adapts to various working conditions.

About the 154Z

The 154Z offers a balance of compact size, stable performance, and modern lithium technology. Equipped with a 24V/30Ah Li-ion battery with BMS, it supports opportunity charging through its integrated charger, making it highly flexible for all-day operations.

The protective flip cover adds safety and prevents accidental disconnections, while the reliable drive system—shared with JK’s proven ET—ensures consistent durability. With standard features like a dual-handle tiller and optional add-ons such as carved PU wheels or extended forks, the 154Z is built for businesses seeking efficiency, safety, and adaptability.

FAQs

What is the maximum load capacity of the 154Z?

The 154Z has a load capacity of 1.5 tons, making it suitable for standard warehouse, retail, and logistics operations.
What makes the 154Z more stable than other pallet trucks?

It comes equipped with industrial floating stabilizing wheels as standard, which improve balance, ensure smooth passage over uneven floors, and provide safer load handling.
What type of battery does the 154Z use?

The truck is powered by a 24V/30Ah removable Li-ion battery with an integrated BMS. Its plug-in design and protective metal cover make it both safe and easy to swap.
How compact is the 154Z?

With a fork face length of only 400 mm and a service weight of 160 kg, the 154Z is highly maneuverable in narrow aisles and confined spaces, while still handling heavy-duty tasks.
Are there customization options for the 154Z?

Yes. The 154Z offers optional fork sizes, charger configurations, and wheel types, allowing businesses to tailor the truck to specific pallet standards and operational needs.

PRODUCT FEATURES

Load Capacity	1500Kg(3306.93 lb)
Fork Dimensions	1150/150/55mm(45.28/5.91/2.17in)(Lxexs)
Distance Between Fork-arms	685mm/560mm(26.97/22.05in)
Battery Voltage/Nominal Capacity	24V30Ah lithium battery
Turning Radius	1475mm(58.07in)
Lift Height	115mm(4.53in)
Steering Design	Mechanical
Service weight	160Kg(352.74lb)
Product Color	Ivory/Red/Customization

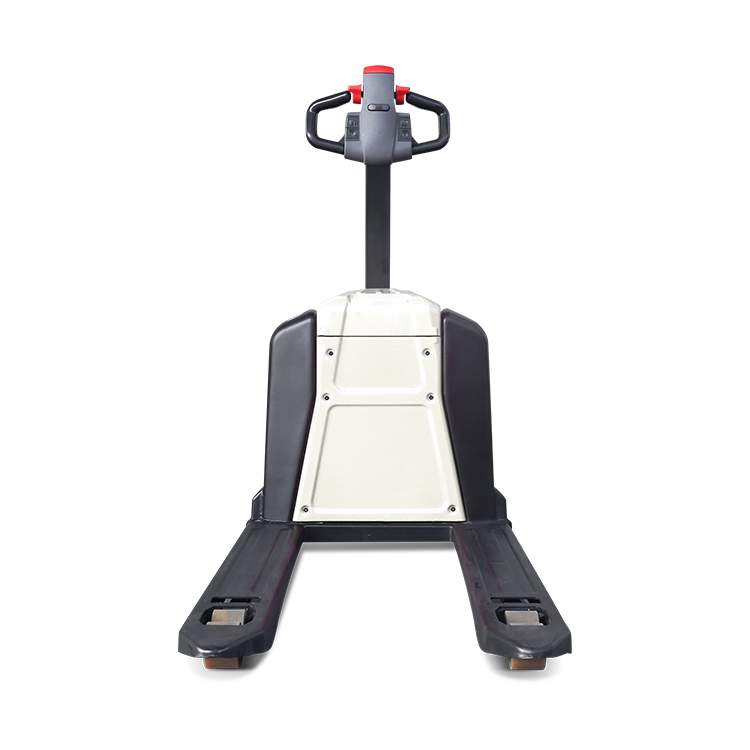

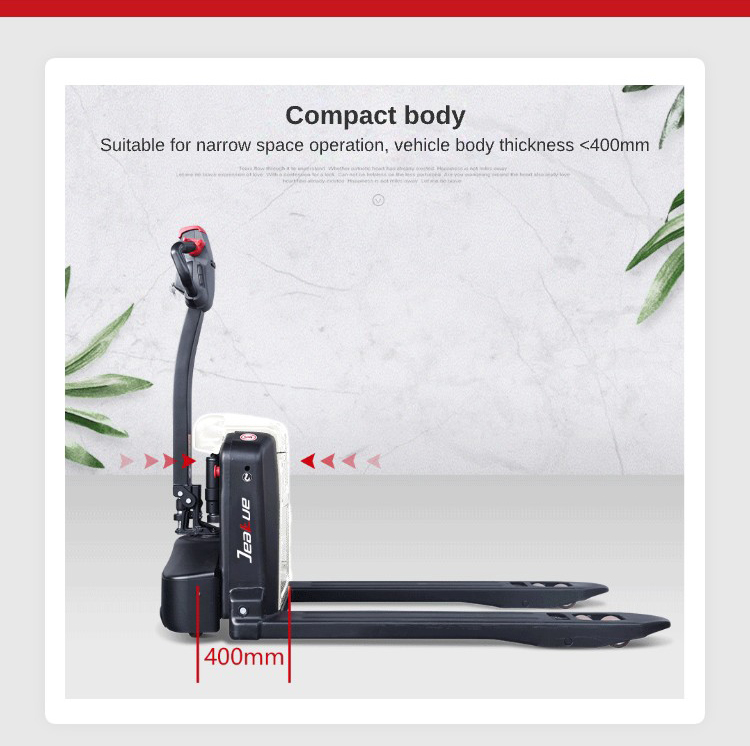

Compact body
JEAKUE Suitable for narrow space operation, vehicle body thickness<400mm

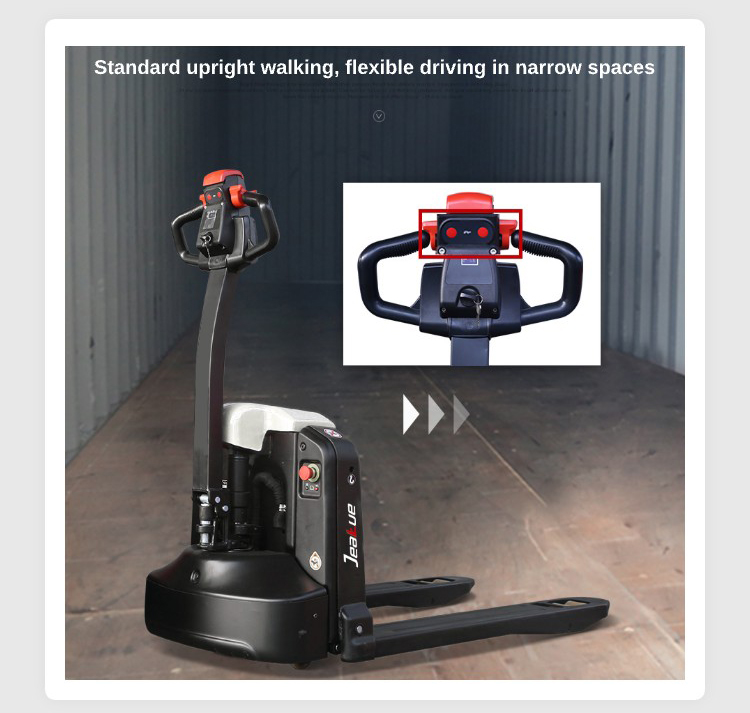

Standard upright walking, flexible driving in narrow spaces

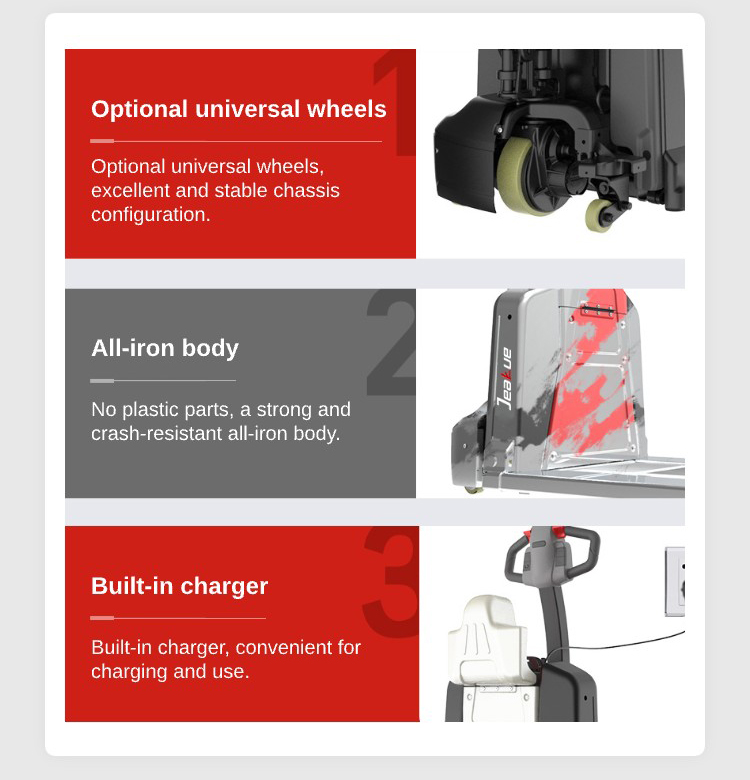

Optional universal wheels
Optional universal wheels, excellent and stable chassis configuration.JEAKUE 1.5 Ton Pedestrian Lithium Battery Electric Pallet Truck-154Z

All-iron body
JEAKUE No plastic parts, a strong and crash-resistant all-iron body.

Built-in charger
Built-in charger, convenient for charging and use.JEAKUE 1.5 Ton Pedestrian Lithium Battery Electric Pallet Truck-154Z
