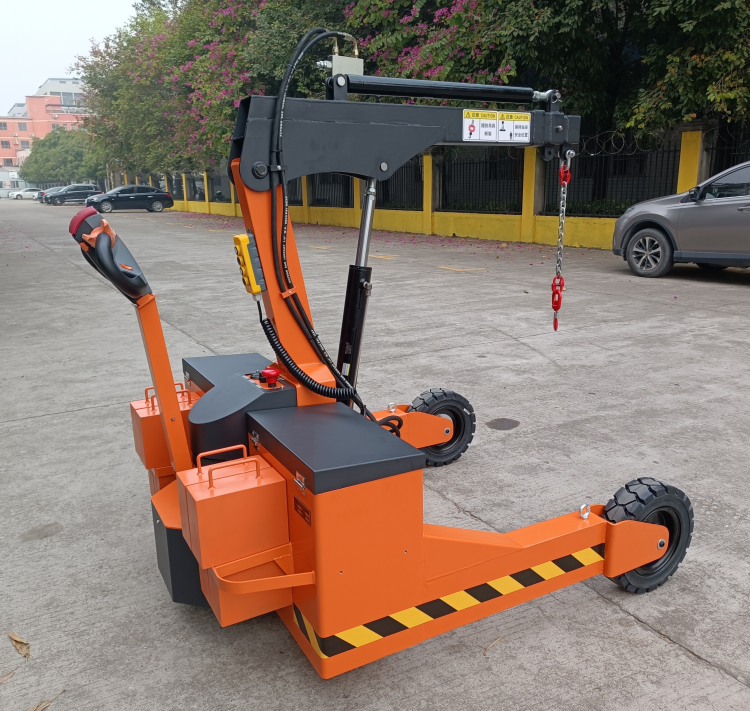

1.2Ton Rough Terrain Electric Crane-ET-120NC

Rated Capacity:1200kg(2645.54lb)

Maximum hook height:3200mm(125.98in)

2×12V120Ah Lithium Battery/Lead-acid Battery

Description

Brand		JEAKUE
Model		ET-120NC
Power supply		Electric
Operating type		Pedestrian
Max lifting weight	kg	1200
Rated elongation load	kg	300
Wheelbase	mm	1220
Truck weight（with battery）	kg	690
Battery weight	kg	70
Tire type,Drive wheel/Supporting wheel		Rubber
Sizes of drive wheel（diameter×width）	mm	Φ300×100
Sizes of bearing wheel（diameter×width）	mm	2×Φ375×115
Drive wheel/bearing wheel number(X=Drive wheel)	mm	1×/2
Overall height	mm	1660
Height of tiller in drive position	mm	1010
Maximum hook height	mm	3200
Overall length	mm	1775
Overall width	mm	1335
Ground clearance	mm	135
The second arm is extended	mm	610
The third arm is extended	mm	3×203
Turning radius	mm	1790
Drive speed load/unload	Km/h	3～5
Lift speed load/unload	Mm/S	13/25
Lowering speed load/unload	Mm/S	20/12
Max gradeability load/unload	%	5/10
Brake type		Electromagnetic
Drive motor rating	kw	AC1.6
Lift motor rating	kw	DC2.0
K20 Battery voltage/nominal capacity	V/Ah	2×12/120
Battery weight	kg	70
Type of drive control		AC
Steering type		Mechanics
Noise level	dB(A)	<70
