Description

Explore the TCL122

TCL122 is JK’s most compact and convenient electric dual-drive three-wheel electric forklift, with a load capacity of 1.2 ton. Its small size, dual drive system, and overhead guard height below 2 meters provide high agility, allowing it to work in narrow aisles. The lithium-powered TCL122 combines manoeuvrability, comfort, efficiency, and safety, making it ideal for various handling tasks in tight spaces and across different floors.

1.Compact size

With its service weight less than 2 tons, compact size, and overhead guard height (h6) < 2000mm, the TCL122 is ideal for mezzanines and cargo lifts usage and in narrow spaces like intensive warehousing and HGVs. To fits the smallest of spaces, it also provides optional folding forks for increased versatility. Despite its compactness, the TCL122 prioritises operator comfort with an ergonomic design, providing an ample legroom of 464mm for a comfortable operating experience.

2.Dual drive motors

The dual drive motors give the TCL122 sensitive steering and the 3-wheel design allows it to turn on the spot. Both contribute to its smaller turning radius of 1422mm and offers great maneuverability in crowded environments. With a top speed of 13km/h, the truck can move pallets quickly and ensures working efficiency.

3.Li-ion G PMSM technology

Equipped with 80V Li-ion battery and integrated charger as standard, the TCL122 supports opportunity charging with no maintenance. Additionally, the TCL122 employs advanced permanent magnet synchronous motor (PMSM) technology and can achieve 10-15% energy savings and extend runtime by 10% compared to conventional motors.

4.Automatic parking brake

The TCL122 features an automatic parking brake which can protect the forklift from accidentally rolling back when parked on a slope. It’s also equipped with turn speed control as standard for operation safety and stability even in the tightest of corners.

Application

Versatile Usage: In the food industry, at logistics centres, in HGVs or containers, and in retail environments; whenever things get really tight,TCL122 is the solution.
This lightweight and compact electric forklift is ideal for indoor usage in narrow aisles, mezzanines and cargo lifts. It’s a great space-saving solution for intensive warehousing.

FAQs

What makes the TCL suitable for tight spaces?

The TCL features a compact design with dual-drive motors, providing an ultra-tight turning radius of just 1422mm. Its overhead guard height is below 2 meters, allowing it to operate in cargo lifts, mezzanine floors, and narrow aisles where traditional forklifts cannot manoeuvre.

What are the advantages of the lithium battery system?

The 80V lithium-ion battery offers opportunity charging capabilities, requires no maintenance, and provides 10-15% energy savings compared to traditional systems. It delivers extended runtime and can be charged quickly during breaks, maximizing operational efficiency.

How does the dual-drive system improve performance?

The dual-drive motor configuration provides enhanced agility, sensitive steering, and superior manoeuvrability in tight spaces. This system allows the FBS to navigate challenging environments while maintaining smooth, responsive control and optimal performance.

What is the load capacity and is it suitable for heavy-duty applications?

The TCL has a 1.0-ton load capacity, making it ideal for medium-duty material handling tasks in warehouses, logistics centres, retail environments, and food industry applications where space constraints are a primary concern.

What safety features are included?

The TCL is equipped with automatic parking brake and turn speed control systems to ensure safe operation in confined spaces. These intelligent safety features work together to provide secure handling while maintaining the forklift’s exceptional manoeuvrability in tight environments.

About theTCL122

The TCL122 revolutionises material handling with its cutting-edge dual-drive motor system and advanced PMSM technology, delivering exceptional agility with an ultra-tight 1422mm turning radius for navigating narrow aisles and confined spaces. Powered by an 80V lithium-ion battery, this compact forklift achieves 10-15% energy savings while providing opportunity charging, maintenance-free operation, and extended runtime.

Built with intelligent safety features including automatic parking brake and turn speed control, the TCL122 combines a 1.0-ton load capacity with a compact design that fits through cargo lifts and under 2-metre clearances. The dual-drive configuration and lithium battery technology deliver smooth, responsive performance while maintaining maximum efficiency for intensive warehousing applications in tight indoor environments.

PRODUCT FEATURES

Load Capacity	1200Kg(2645.55/3306.94lb)
Battery	80v50Ah Lithium Battery
Controller/Motor	AC
Lift Height	3000mm(118.11in)
Turning Radius	1519mm(59.80in)
Dimensions	40X100X920mm(1.57/3.94/36.22in)（sxexl）
Steering Design	Hydraulic
Tyre Type	Solid tyre
Service Weight	2469Kg(5443.22lb)
Product Color	Ivory/Red/Customization

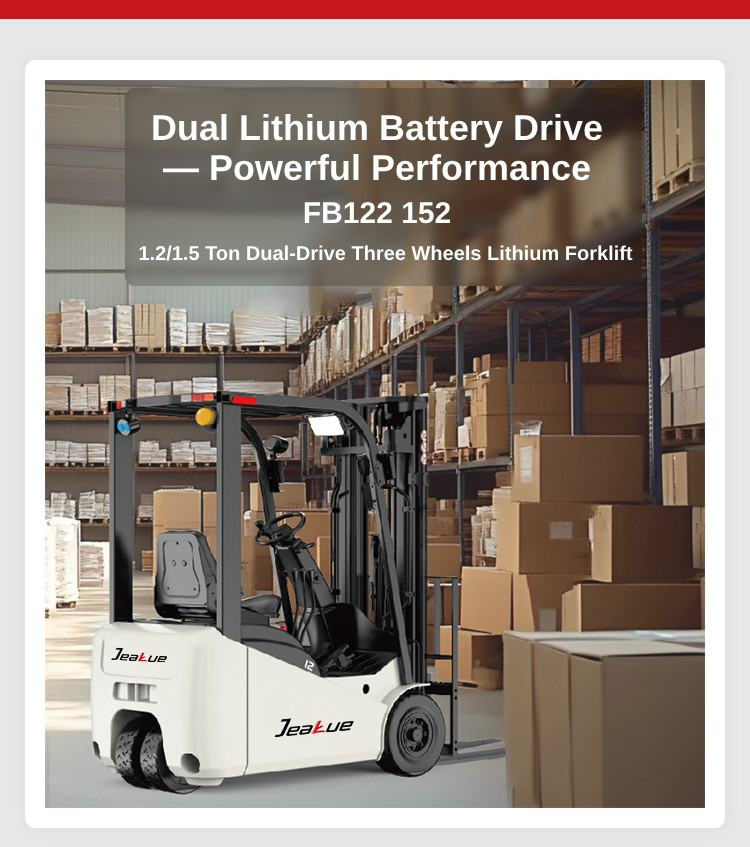

Dual Lithium Battery Drive — Powerful Performance JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

1.2/1.5 Ton Dual-Drive Three Wheels Lithium Forklift

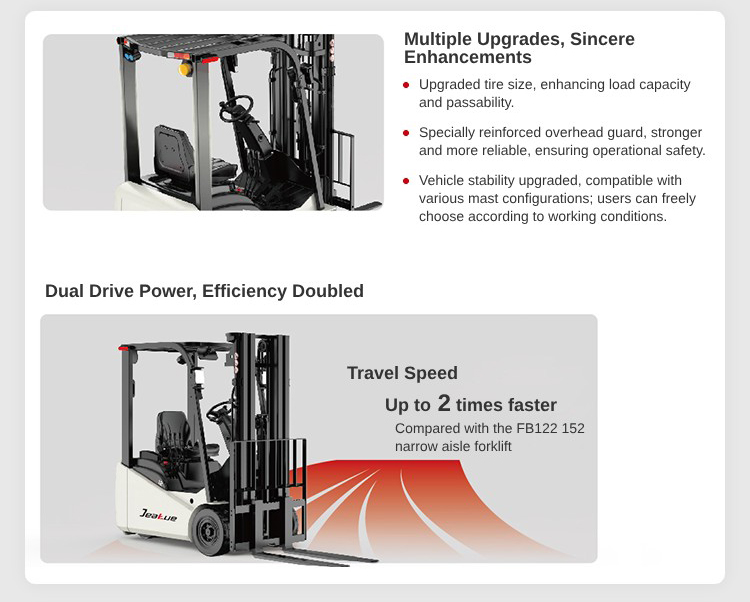

Multiple Upgrades, Sincere Enhancements JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152



Upgraded tire size, enhancing load capacity and passability.JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

2. Specially reinforced overhead guard, stronger and more reliable, ensuring operational safety.JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

3. Vehicle stability upgraded, compatible with various mast configurations; users can freely choose according to working conditions.JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

Dual Drive Power, Efficiency Doubled

Travel Speed JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

Up to 2 times faster

Compared with the EFS121 narrow aisle forklift JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

Lifting/Lowering speed reaches 1.6 times JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

Compared with the EFS121 narrow aisle forklift JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

Maximum Gradeability Up to 15% (Unloaded) JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

80V Permanent Magnet Synchronous Motor, Low Energy Consumption, Longer Endurance

Extended Battery Life JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

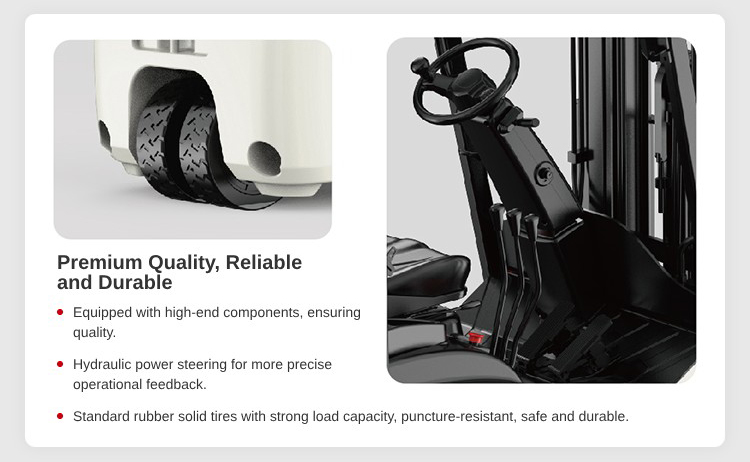

Premium Quality, Reliable and Durable JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

1.Equipped with high-end components, ensuring quality.

2. Hydraulic power steering for more precise operational feedback.JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

3. Standard rubber solid tires with strong load capacity, puncture-resistant, safe and durable.JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

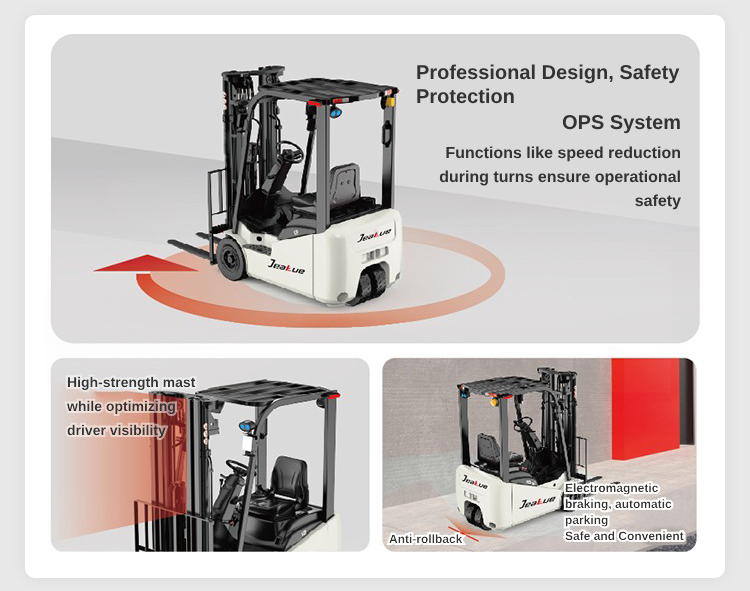

Professional Design, Safety Protection

OPS System

Functions like speed reduction during turns ensure operational safety

High-strength mast while optimizing driver visibility JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

Electromagnetic braking, automatic parking JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

Safe and Convenient JEAKUE 1.2-1.5 Ton Lithium Battery Forklift Truck -FB122/152

Anti-rollback
