Description

Product Highlights

Environmental Friendly

★Electric drive, green and environmentally friendly
★Zero emissions, meeting the strict requirements of indoor and outdoor emissions on construction sites

Intelligent Control For worry Free And Effortless

★The product is controlled by a proportional handle, with more operations controlled by electro-hydraulic proportional control, electro-hydraulic smooth and precise action and stronger micro movement
★The product comes standard with an IOT system, paired with an intelligent large screen, allowing users to easily control device status anytime, anywhere, and achieve easy device management.

Low Maintenance Costs

★Compared to diesel power, battery maintenance costs are lower, reducing overall operating costs.

Safe And Reliable, Good Passability Performance

★Our product is equipped with floating bridge, which can ensure real-time four-wheel landing and easily handle uneven road conditions,
making it safer and more reliable
★The product features maximum 5°tilt angle, combined with floating bridge, achieving body posture adjustment

PRODUCT PARAMETERS

Model	HT 220JE	HT 285JE	HT 350JE
Dimension

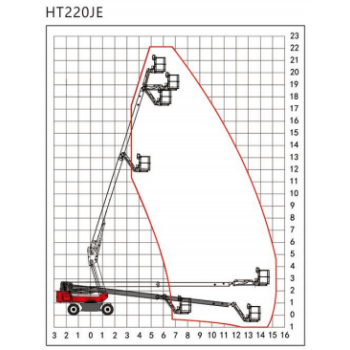

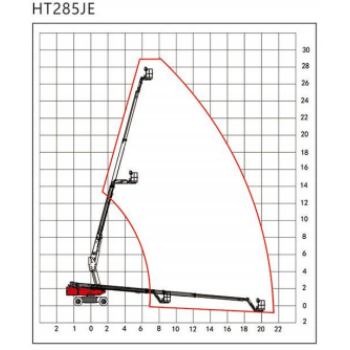

Max.Working Height	22m	28.5m	34.3m
Max.Platform Height	20m	26.5m	32.3m
Max.Outreach	14.05m	21m	18.4m
Maximum horizontal work amplitude	14.65m	21.6m	19m

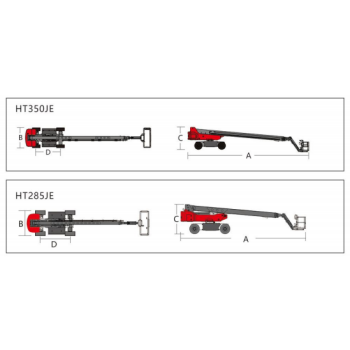

A Length(stowed)	11.1m	12.05m	15.6m
B Width (stowed)	2.5m	2.5m	2.49m
C Height(stowed)	2.75m	2.8m	2.865m
D Wheelbase	2.8m	3.0m	3.0m
Ground Clearance	0.3m	0.4m	0.33m
Platform Size	2.44*0.9*1.1m		2.4*0.9*1.1m
Performance
Lift Capacity(Restricted/Unrestricted)	300/230kg	454/300kg	454/300kg
Max. Load number(Restricted/Unrestricted)	3pers/2pers
Drive Speed(Stowed)	4.8/5 km/h	5.1km/h	5km/h
Drive Speed(Raised)	1.0/1.1 km/h	1.1km/h	1.1km/h
Gradeability  (4WD)	30%axle drive/40%	45%	40%
Turntable Rotation (Angle/Continuity)	360°continuous	360°continuous	360°continuous
Platform Rotation	180°	180°	180°
Max. Tilt Angle	5°	5°	5°
Turing Radius(Inside/Outside)	mdriving  axle    1.35/3.61.9/3.9	3.6/6.88m	3.6/6.88m
	1.6m	1.8m	1.55m
Max. Lateral Force(Restricted/Unrestricted)	400N	400N	400N
Max. Wind Speed	12.5m/s	12.5m/s	12.5m/s
Tire Specification/Type	355/55D625 (foam filled tire) 36×14-20 (solid   tire)	15-625 (foam filled tire)	15-625 (foam filled tire)
Power
Drive wheels number x Steering wheels number	4×4driving axle/4×2	4×2	4×2
Hydraulic Tank Capacity	140L		200L
Battery Specifications	axle     drive80V-390Ah       48V/460  Ah     (Lead  acid  battery)       48V/460  Ah     (Lithium   battery)	80V460AH (Lithium  battery) 100-240V AC/80A	80V460AH (Lithium  battery) 100-240V AC/80A
Charger (Input Voltage/Output Current)	48V60A	80V80A	100-240V AC/80A
Weight
Total Weight	11500/11100kg	18350kg	19500kg

Standard Features

Hydraulic leveling platform	Over load Sensor	Tilt alarm
180°hydraulic rotation platform	5-inch super-scale colour screen	4 wheel brake
Rear inspect and driving confirm	Diagnosis system	Emergency brake release
Three joysticks gradual proportional control	Emergency stop system	4 wheel drive
Horn and buzzer safety warnings	Emergency lowering system	Foam filled tire
Flash light	Maximum tilt angle of 5°	Foot switch

Options Features

Platform swing gate	Hydraulic oil for extremely cold areas	GPS
Platform alternate railing	Pipeline for extremely cold areas
Hydraulic oil cooler	AC power source
