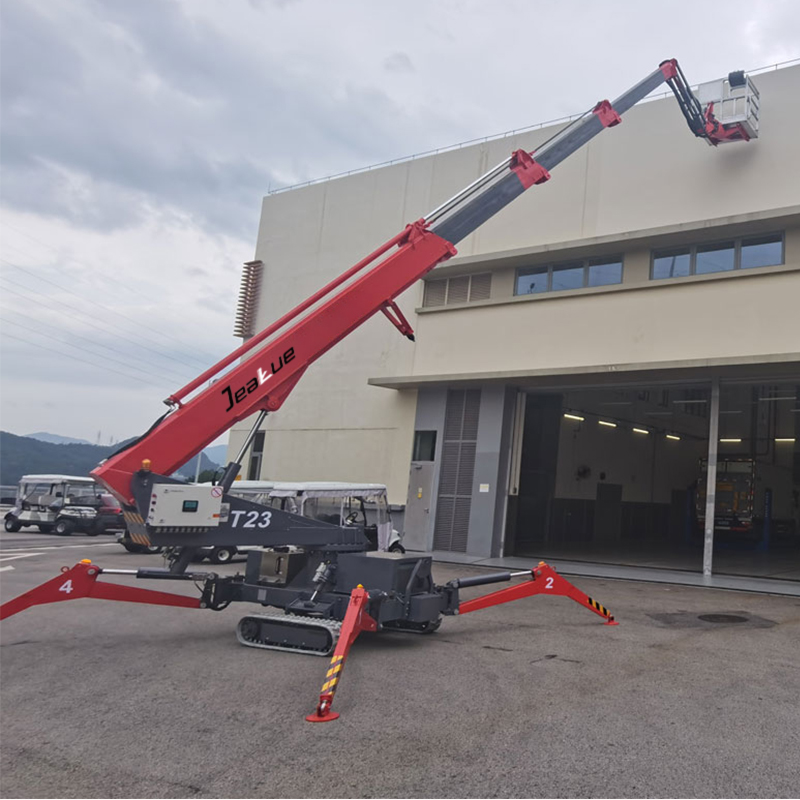

0.2 Ton Telescopic Spider Lift – T23
Maximum Working Height: 23.00m
Maximum Working Radius: 10.00m
Safe Working Load: 200kg
Overall Weight: 3700kg
Description
| Parameter | Value |
|---|---|
| Model: | T23 |
| Max. Working Height: | 23.00 m |
| Max. Platform Height: | 21.00 m |
| Load Capacity: | 200 kg |
| Horizontal Working Radius: | 10.00 m |
| Basket Rotation Angle: | 180° |
| Jib Rotation Angle: | 180° |
| Turntable Rotation: | 400° non-continuous |
| Working Platform Size: | 1.2 × 0.8 × 1.1 m |
| Transport Length: | 6.50 m |
| Transport Width: | 1.50 m |
| Transport Height: | 2.10 m |
| Travel Speed: | 0–2.0 km/h |
| Working Slope: | 20% |
| Max. Climbing Gradient: | 30% |
| Total Weight: | 3700 kg |
| Electric Motor: | 220 V/2.2 kW or 110 V/1.5 kW |
| Dual Standard Power (Kubota Diesel): | 14.9 kW Diesel Engine |
| Telescopic Tracks: | Standard |
