Description

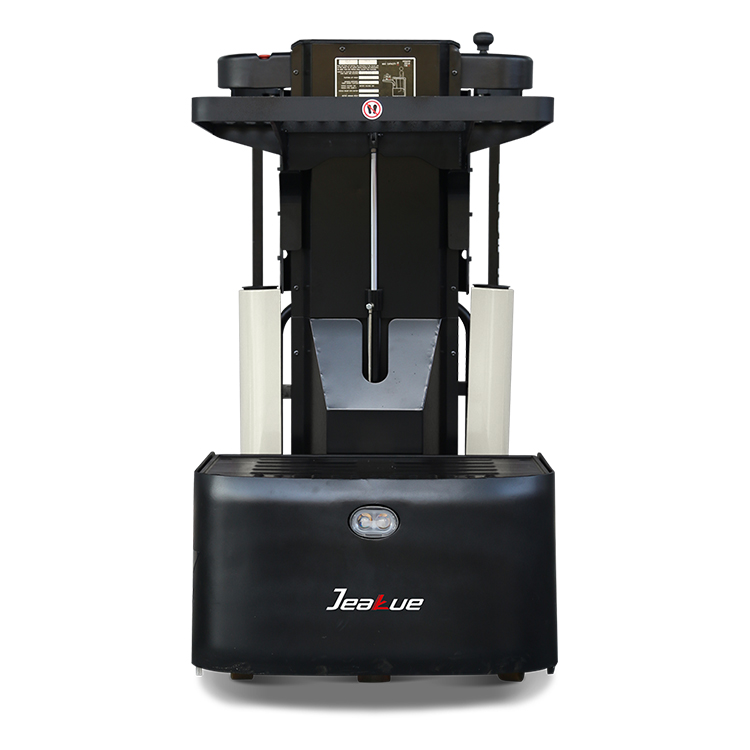

Explore the EOP03

The EOP03 provides an efficient, ergonomic, and safe alternative to ladders and traditional order pickers. With a maximum picking height of 4.5 meters and travel speed up to 6.5 km/h, it is ideal for small to large warehouses. The intuitive driving system, compact chassis, and optional Li-ion battery ensure productivity and operator comfort throughout the shift
1.Safe and efficient order picking

The EOP03 provides a stable and efficient alternative to ladders and traditional pickers. With a picking height of 4.5 m, it allows operators to reach high racks safely and comfortably, significantly improving picking productivity in tight storage environments.
2.Intuitive driving and control system

Featuring a mini steering wheel on the left and speed/direction control on the right, the EOP03 ensures smooth and precise handling. The integrated LCD display provides clear information about battery level, driving direction, and operating hours, enhancing user awareness and control.
3.Compact and ergonomic design

With a width of 750 mm and turning radius of only 1260 mm, the EOP03 is perfect for narrow aisles. Its spacious operator compartment, fingertip control buttons, and 180° steering capability allow easy, fatigue-free operation throughout extended shifts.
4.Li-ion battery for maximum uptime

Equipped with a 24V/135Ah Li-ion battery and a single-phase 24V-30A integrated charger, the EOP03 supports fast opportunity charging with minimal downtime. The maintenance-free Li-ion system ensures consistent performance, reduced operating costs, and environmental sustainability

Application

The EOP03 series is purpose-built for e-commerce, retail, and general warehouse environments where frequent low- to mid-level order picking is required. Its compact 750 mm width and 1260 mm turning radius allow easy operation in narrow aisles and crowded storage areas. The model’s automatic travel speed adjustment based on lifting height ensures both efficiency and safety. With options for lead-acid or Li-ion batteries, the EOP03 adapts to various working schedules and energy requirements.

About the EOP03

The EOP03 series is purpose-built for e-commerce, retail, and general warehouse environments where frequent low- to mid-level order picking is required. Its compact 750 mm width and 1260 mm turning radius allow easy operation in narrow aisles and crowded storage areas. The model’s automatic travel speed adjustment based on lifting height ensures both efficiency and safety. With options for lead-acid or Li-ion batteries, the EOP03 adapts to various working schedules and energy requirements.

FAQs

What is the maximum picking height of the EOP03 / EOP05?

The EOP03 provides a maximum picking height of 4.5 meters, allowing operators to safely and efficiently access higher shelves without ladders. The stable platform and automatic speed adjustment ensure safe operation even at maximum elevation.
What makes the EOP03 ideal for narrow warehouse aisles?

With a compact chassis width of only 750 mm and a turning radius of 1260 mm, the EOP03 offers exceptional maneuverability. It’s perfect for retail stores, e-commerce facilities, and high-density warehouses where space is limited and agility is essential.
Which battery options are available for the EOP03?

The EOP03 can be equipped with either a 24V/120Ah lead-acid battery or a 24V/135Ah Li-ion battery. The Li-ion version includes a single-phase onboard charger, supporting opportunity charging and reducing downtime for continuous operation.
What safety features are included on the EOP03?

Safety is enhanced by features such as automatic gate locking, operator presence detection, electromagnetic braking, and automatic travel speed reduction at elevated heights. Additionally, the blue spot light improves visibility in busy warehouse environments.
How does the control system improve operator efficiency?

The EOP03 features an intuitive driving system with left-hand mini steering and right-hand direction/speed control, ensuring precise handling and minimal fatigue. The LCD information display and ergonomic platform layout support effortless, productive operation during extended shifts.

PRODUCT PARAMETERS

Load Capacity	336kg(740.75lb) Electric Order Picker
Battery Voltage/Nominal Capacity	24V135Ah lead-acid battery
Turning Radius	1260mm(49.61in)
Lift Height	3615mm(142.32in)
Turning Radius:	1360mm(53.54in)
Steering Design	Electric Steering Power
Service Weight	800Kg(1763.70lb)
Product Color	Ivory/Red/Customization
Travel Speed, Laden/Unladen	6/6.5 km/h
Max Grade ability,Laden/Unladen	5/8 %
Motor power	0.65KW

Safe and User- Friendly JEAKUE Electric Order Picker
Mechanical lock on the lifting rear door to prevent accidental opening;
Anti-crushing switch during descent to prevent  accidental pinching;
4-speed operation,new controller,cooperating with drive encoder to monitor vehicle speed in real – time;
Two – hand inductive operation to prevent accidental operation;
Liftable and walkable linkage operation;
Pump controller-controls lifting and lowering with shock absorption effect.

Smaller Working Radius JEAKUE Electric Order Picker
Compact body size, enabling in-place steering

Superb Endurance JEAKUE Electric Order Picker
Maximum speed 6.5KM, endurance 4.5 hours

Freely Lifting Front Shelf JEAKUE Electric Order Picker
Liftable front shelf, suitable for picking goods of different sizes

High-Strength Structure JEAKUE Electric Order Picker
Precision-processed H-channel steel has better load-bearing
capacity, stronger stability and safer operators
