Explore the 208

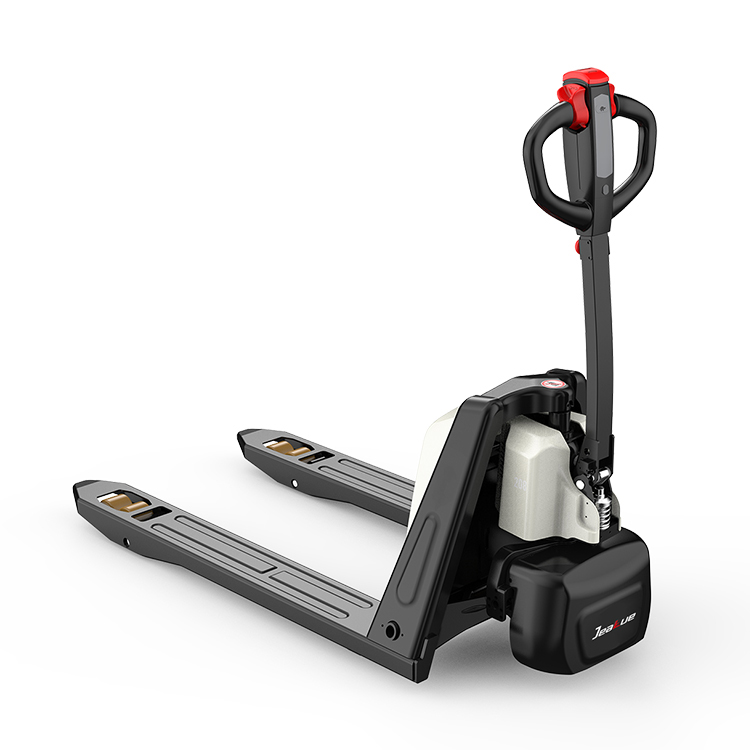

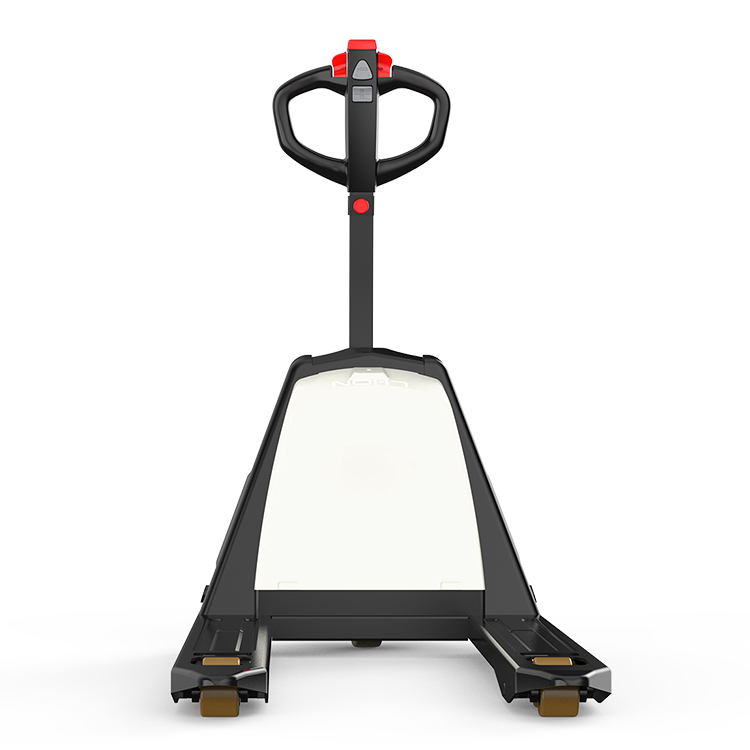

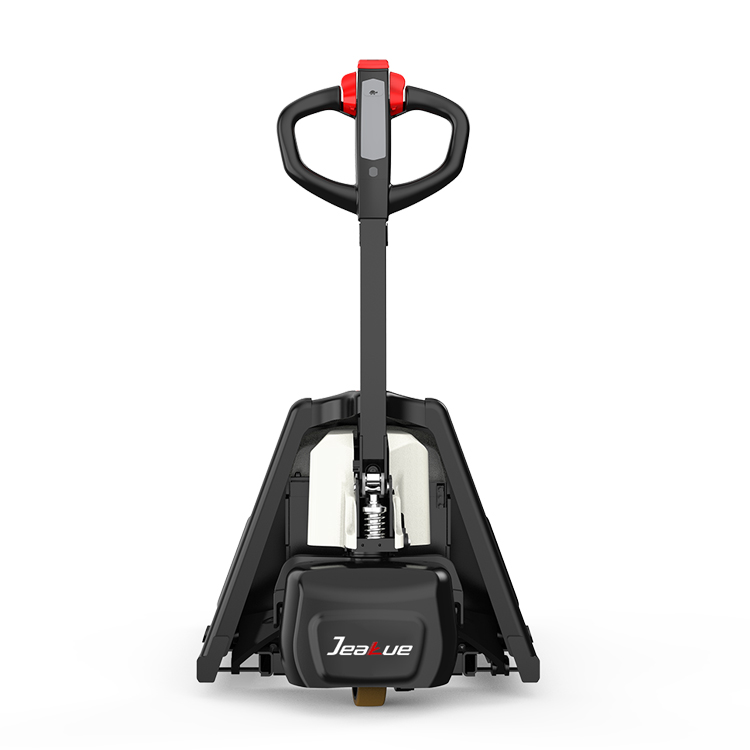

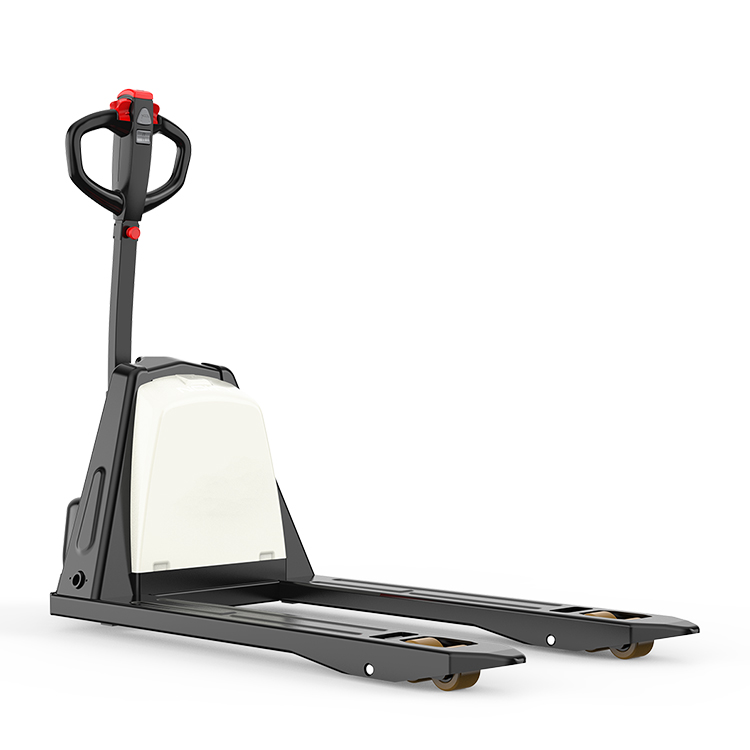

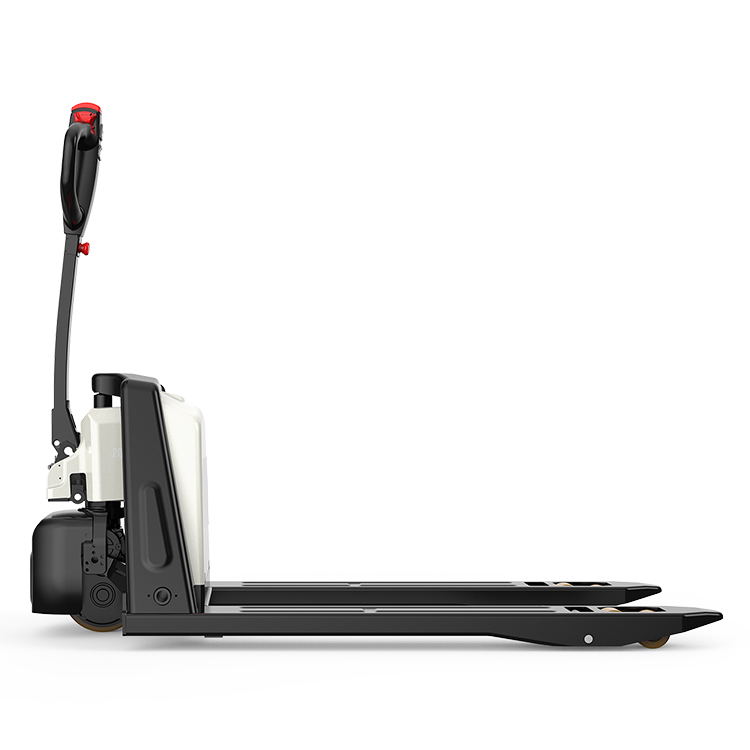

The 208 is a 2.0 tonne capacity electric walk-type pallet/stack truck engineered by JEAKUE for ease of operation and maintenance. It features a new chassis kit for simpler servicing, an upgraded system for stronger adaptability, and improved configuration for smoother workflow. With its compact dimensions and pedestrian style drive mode, the 208 offers high performance in constrained environments.
1.2.0 tonne rated load capacity

The 208 supports a load rating of 2,000 kg, offering reliable capacity for standard pallet movements and medium-duty material-handling operations.

2.Compact chassis and tight turning radius

The 208 supports a load rating of 2,000 kg, offering reliable capacity for standard pallet movements and medium-duty material-handling operations.

3.Updated modular components for service ease

The 208 uses a completely new component kit and system configuration that enhances serviceability and operational adaptability, reducing maintenance time and simplifying upkeep.

4.Pedestrian-style electric drive for versatile indoor use

The walk-behind drive style enables flexible use in indoor storage, retail backrooms and load staging areas. The 208’s electric motor and control systems deliver smooth, quiet performance with minimal operator fatigue.

PRODUCT PARAMETERS

Load Capacity	2T(4409.24 lb) Electric Pallet Truck
Fork Dimensions:	1150/150/55mm(45.28/5.91/2.17in)(lxexs)
Distance between fork-arms:	685/560mm(26.97/22.05in)
Battery Voltage/Nominal Capacity:	48V20Ah lithium battery
Turning Radius:	1403mm(55.24in)
Lift Height：	110mm(4.33in)
Steering Design:	Mechanical
Service Weight	142Kg(313.06lb)
Product Color	Ivory/Red/Customization

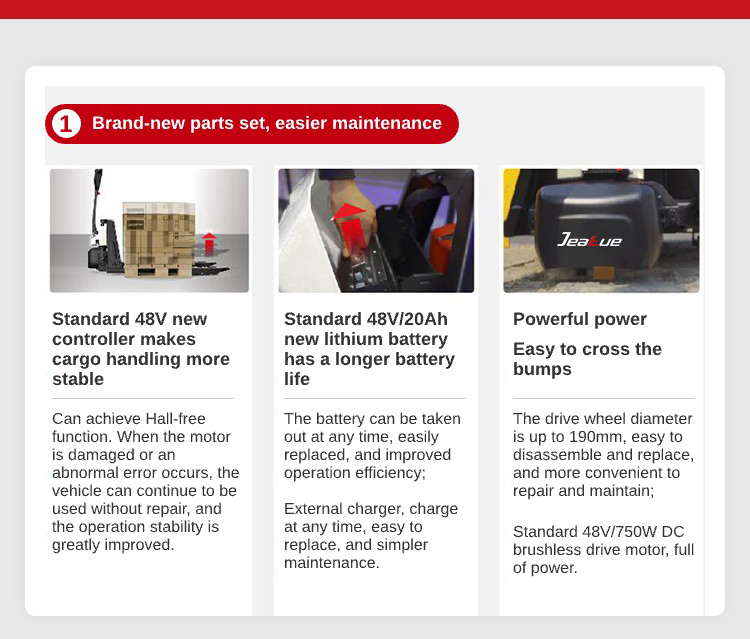

1 Brand-new parts set,easy maintenance JEAKUE 2T Electric Pallet Truck
Standard 48V new controller makes cargo handling more stable Can achieve Hall-free function. When the motor is damaged or an abnormal error occurs, the vehicle can continue to be used without repair, and the operation stability is greatly improved.

JEAKUE 2T Electric Pallet Truck Standard 48V/20Ah new lithium battery has a longer battery life.The battery can be taken out at any time, easily operation efficiency replaced, and improved External charger, charge at any time, easy to eplace, and simpler maintenance.

JEAKUE 2T Electric Pallet Truck Powerful power Easy to cross the bumps.The drive wheel diameter is up to 190mm, easy to disassemble and replace,and more convenient to repair and maintain;Standard 48V/750w DC brushless drive motor, full of power.

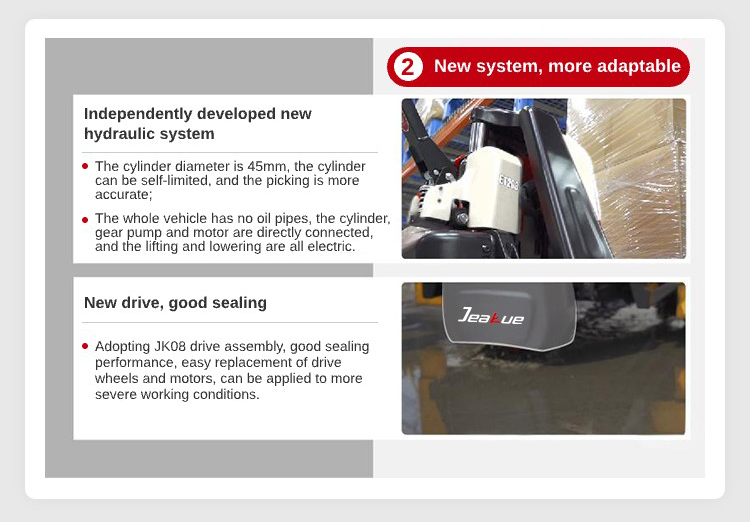

2 New system, more adaptable JEAKUE 2T Electric Pallet Truck
Independently developed new hydraulic system.The cylinder diameter is 45mm, the cylinder can be self-limited,and the picking is more
accurate;The whole vehicle has no oil pipes,the cylinder,gear pump and motor are directly connected,and the lifting andloweringareall electric.New drive, good sealing Adopting JKo8 drive assembly,good sealing performance,easy replacement of drive wheels and motors,can be applied to more severe working conditions.

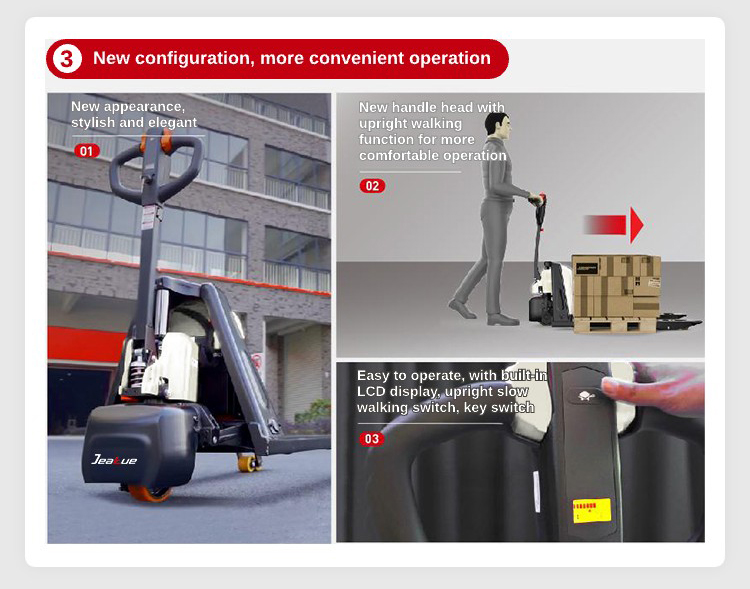

3 New configuration,more convenient operation JEAKUE 2T Electric Pallet Truck

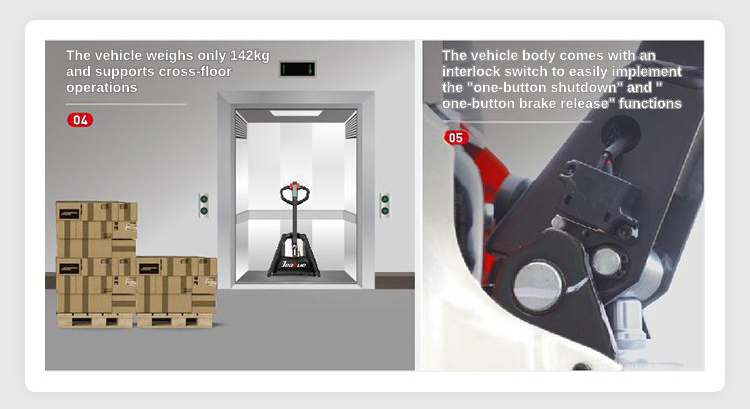

Newappearance,stylish and elegant.The vehicle weighs only 142kg and supports cross-floor operations. New handle head with upright walking functionformore comfortable operation JEAKUE 2T Electric Pallet Truck
JEAKUE 2T Electric Pallet Truck Easytooperate,withbufla-in LCD display.upright slow walking switch,key switch
The vehicle body comes with an interlockswitchtoeasilyimplement the”one-buttonshutdown”and”one-button brakerelease”functions JEAKUE 2 Ton Lithium Battery Electric Pallet Truck -208
