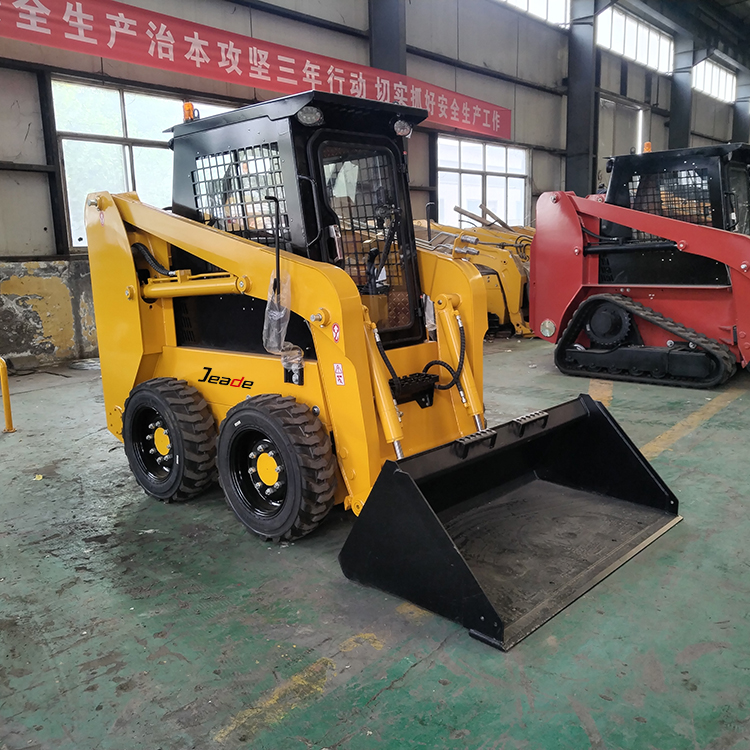

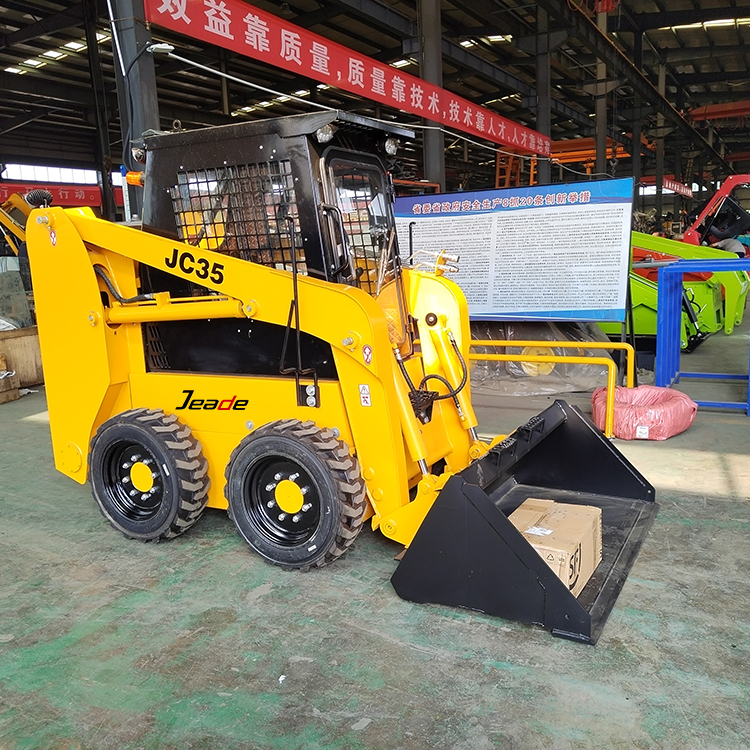

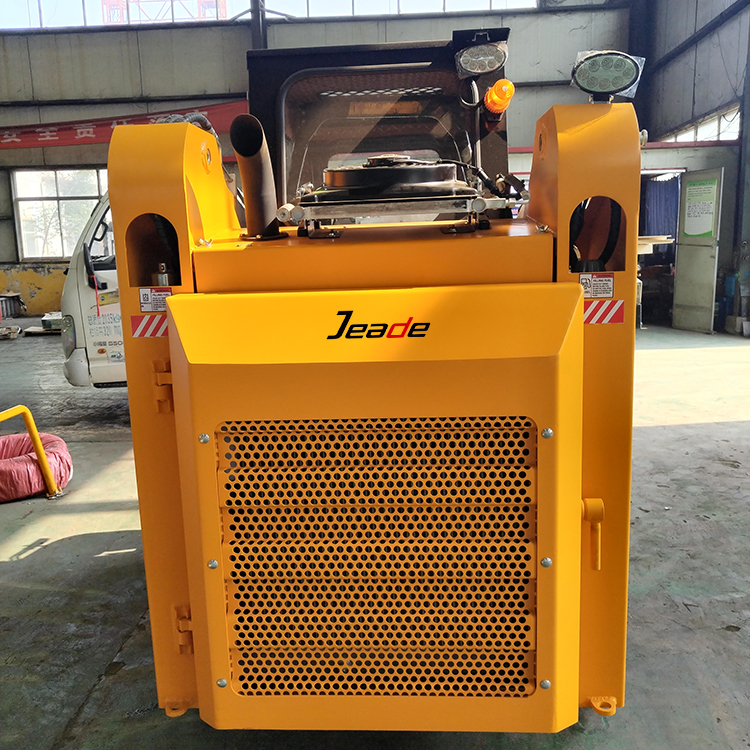

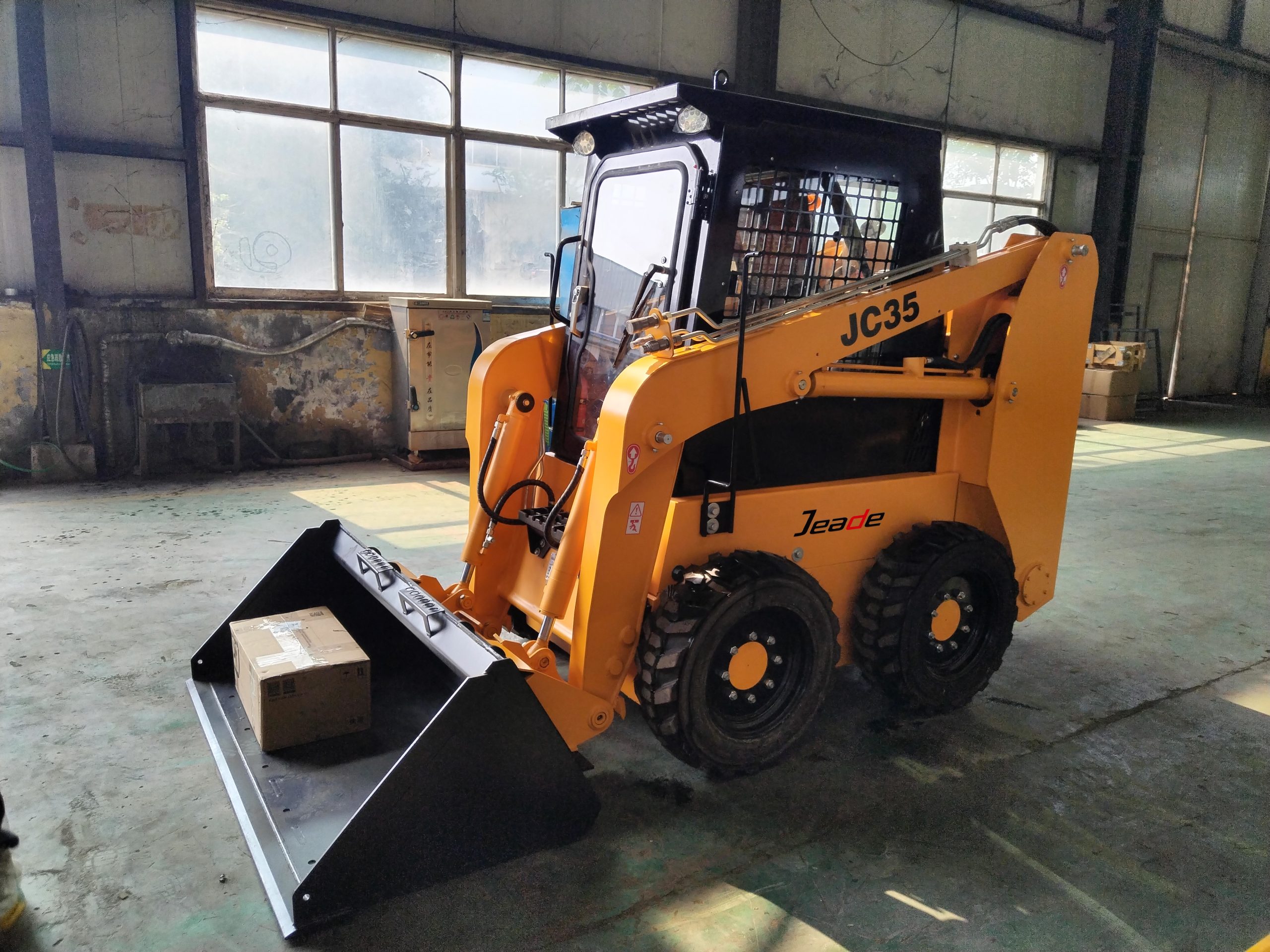

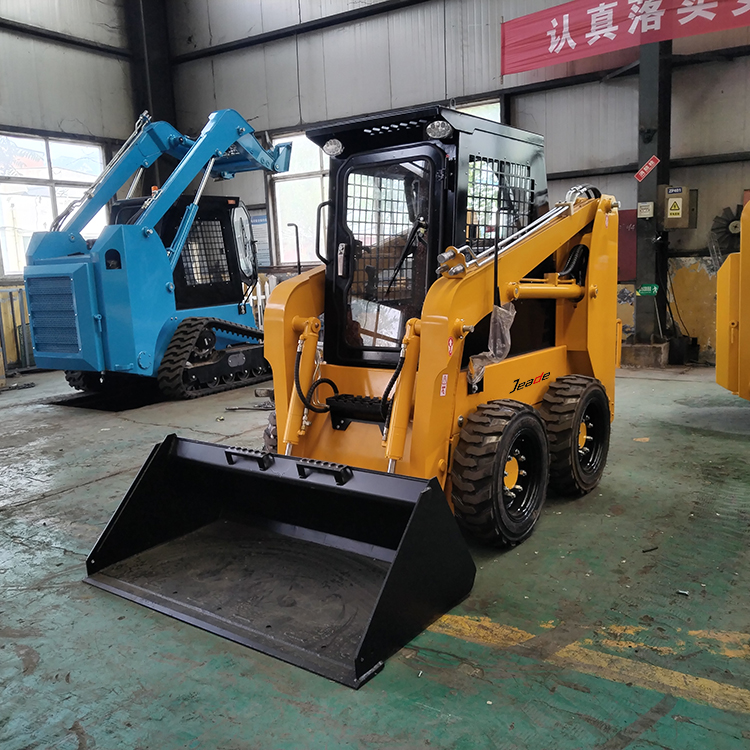

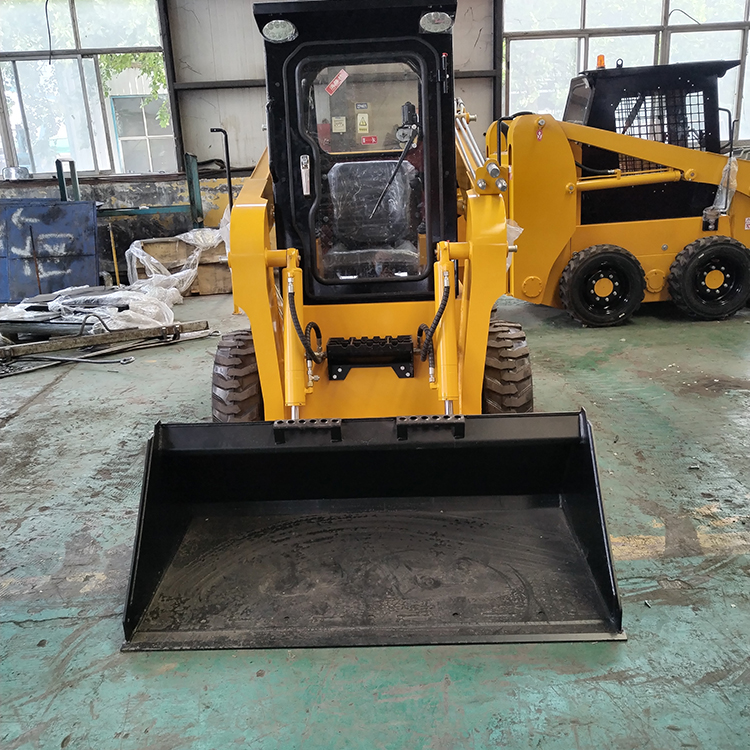

2.6 Ton(5732.01 lb) Diesel Skid Steer Load-JC35

Bucket Capacity: 0.3 (m³) (10.59 ft³)

Rated Load: 500 (Kg) (1102.31 lb)

Operating Weight: 2600 (Kg) (5732.01 lb)

Maximum Dumping Height: 2000(mm) (78.74 in)

Description

	Model	JC35
Performance	Operating weight (kg)	2600
	Rated load (kg)	500
	Bucket capacity (m³)	0.3
	Max Speed (km/h)	10
	Max traction (kN)	≥16
	Max breakout (kN)	≥8.5
	Lifting time of boom (s)	7
Engine	Manufacturer	XINCHAI
	Model	C490BPG
	Rated power (kW/rpm)	36.7/2650
	Engine displacement (L)	2.27
	Emission Standard	ChinaⅡ
Dimension	Overall operating height (mm)	3300
	Height to bucket hinge pin (mm)	2425
	Height to top of cab (mm)	2000
	Height to bottom of level bucket (mm)	2260
	Without bucket length (mm)	2300
	Overall length with bucket (mm)	2950
	Dumping angle at maximum height (°)	40
	Dumping height (mm)	2000
	Dumping reach (mm)	690
	Rollback of bucket on ground (°)	30
	Rollback of bucket at full height (°)	104
	Wheelbase (mm)	897
	Ground clearance (mm)	140
	Angle of departure (°)	20
	Front turning radius without bucket (mm)	1310
	Front tuning radius (mm)	1881
	Rear tuning radius (mm)	1296
	Rear axle to bumper (mm)	964
	Tread width (mm)	1080
	Width (mm)	1400
	Bucket width (mm)	1422
