Description

Explore the EP158

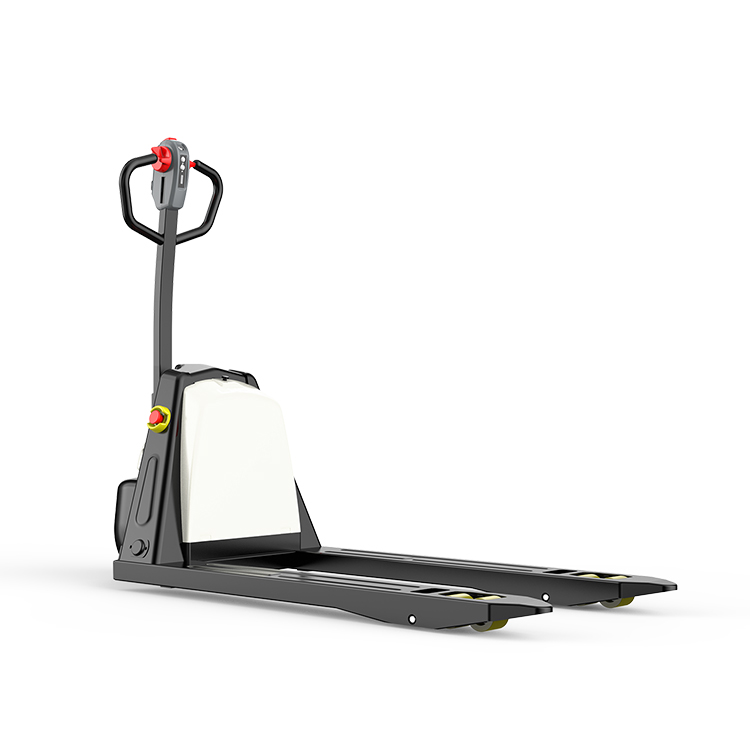

The EP158 from JEAKUE is a 1.5 t electric pallet truck designed to simplify pallet transport in warehouses, logistics hubs and retail environments. Featuring a pedestrian-style operation and a low overall vehicle weight of 115 kg (including battery), it runs on a 48 V/10 Ah (optional 20 Ah) battery and achieves rated loads of 1,500 kg. Short turn radius (1,403 mm) and tight chassis width (685 mm) make it ideal for narrow aisles and constrained spaces.
1.Robust 1.5-tonne load capacity

With a rated capacity of 1,500 kg, the EP158 handles standard pallet loads with ease. Its construction is designed to ensure stability and performance under sustained use.

2.Compact design and tight turning radius

With a turning radius of approximately 1,403 mm and a width of 685 mm, the EP158 manoeuvres easily in narrow aisles and tight spaces where larger trucks struggle.

3.Efficient battery system

Powered by a 48 V battery (10 Ah standard, optional 20 Ah), the EP158 offers reliable runtime for typical shifts and supports efficient operations without frequent downtime.

4.Low-weight, versatile design

At just 115 kg (including battery), the EP158 is lightweight for its class while offering pedestrian operation, making it flexible for both warehouse and delivery-zone use.

Application

Ideal for high-density warehousing, retail supply chain back rooms, and manufacturing stock-rooms where agility and throughput matter, the EP158 excels in tasks such as pallet loading/unloading, staging goods for dispatch, and maneuvering in tight corridors. Its design supports operators working in compact storage zones or tail-lift delivery environments, making it a versatile tool for diverse industries.

About the EP158

The EP158 embodies JEAKUE’s commitment to efficient and user-friendly material-handling solutions. Built with a compact form factor and a pedestrian-style drive for operator convenience, the EP158 offers a 1,500 kg rated capacity, a tight turning radius (1,403 mm) and high manoeuvrability in confined warehouse aisles. With proven powertrain components, a 48 V battery system and simplified controls, it reduces operator fatigue and optimises handling time. Designed for reliability and low-maintenance use, the EP158 supports intensive pallet transport operations while helping reduce cost of ownership.

PRODUCT FEATURES

Load Capacity	1500Kg(3306.93 lb)
Fork Dimensions	55/150/1150mm(2.17/5.91/45.28in)(s/e/l)
Distance Between Fork-arms	560/685mm(22.05/26.97in)
Battery Voltage/Nominal Capacity	48V10Ah Lithium Battery
Turning Radius	1403mm(55.24in)
Lift Height	110mm(4.33in)
Steering Design	Mechanical
Service weight	115Kg(253.53lb)
Product Color	Ivory/Red/Customization

JEAKUE 1.5 Ton Pedestrian Electric Pallet Truck-158 Model Equipped with a new 48V controller.JEAKUE 1500kg pallet truck

Independently developed new hydraulic system, without hydraulic oil and oil tank, solving the matching problem of oil tank and pump, reducing hydraulic system failure rate, and with visible cylinders for higher safety.JEAKUE 1.5 TON Electric Pallet Truck

Compact and flexible, with a turning radius of 1403mm, easily passing through narrow aisles.JEAKUE Lithium Battery Pallet Truck

Uses ZL08 powertrain with excellent sealing, easy motor replacement, and suitable for harsher working environments.JEAKUE Pedestrian Pallet Truck

Equipped with a 48V 750W DC brushless motor, with a wheel diameter of 190mm; easy to disassemble and repair.

The handle has an LCD screen that intuitively displays driving status, lithium battery status, working time, and remaining battery power.

The handle is equipped with buttons for easy unlocking of convenient control and battery power functions.JEAKUE 1.5 Ton Pedestrian Electric Pallet Truck-158 Model

Equipped with a new 48V 10Ah lithium battery, stable performance, easy charging, and the battery is easily removable.

JEAKUE 1.5 Ton Pedestrian Electric Pallet Truck-158 Model Turning Radius 1403mm
