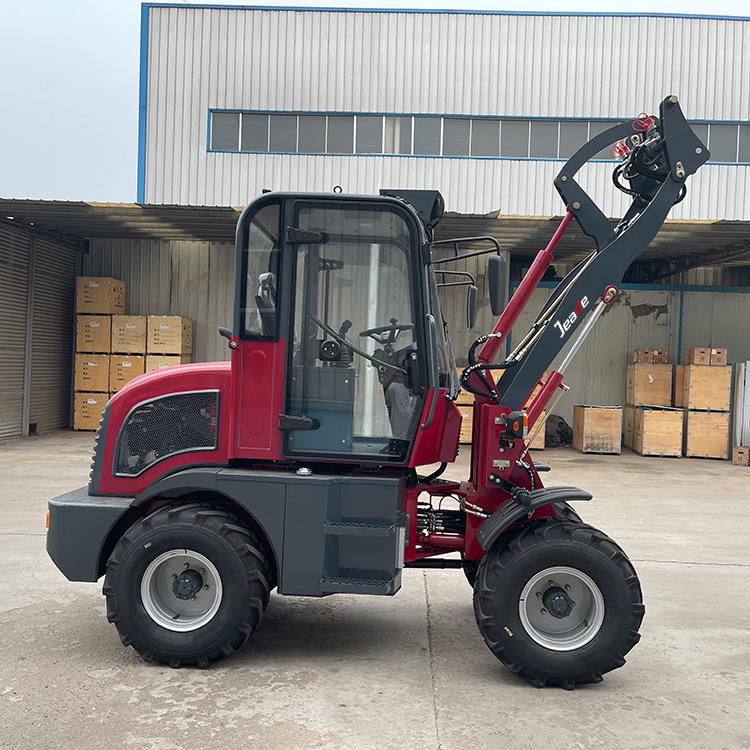

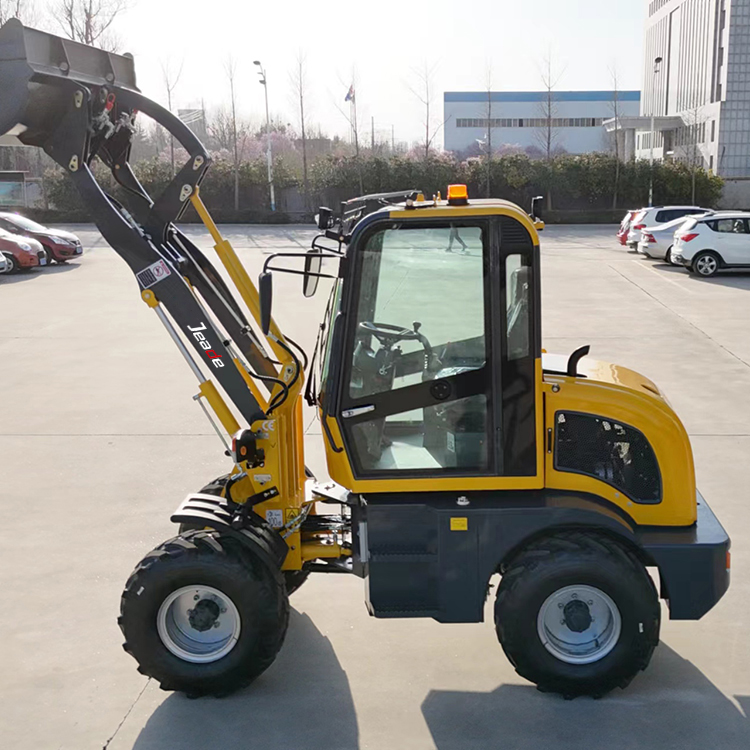

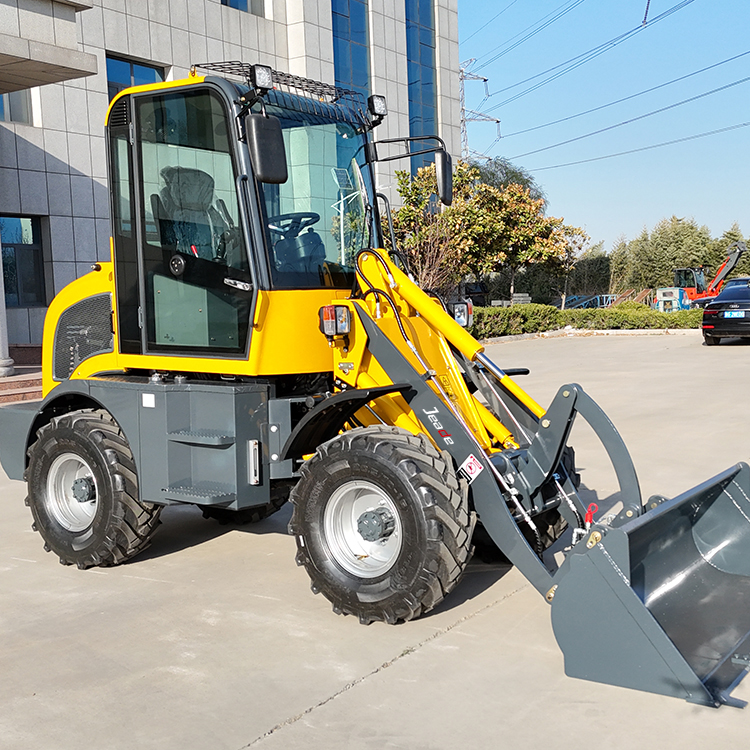

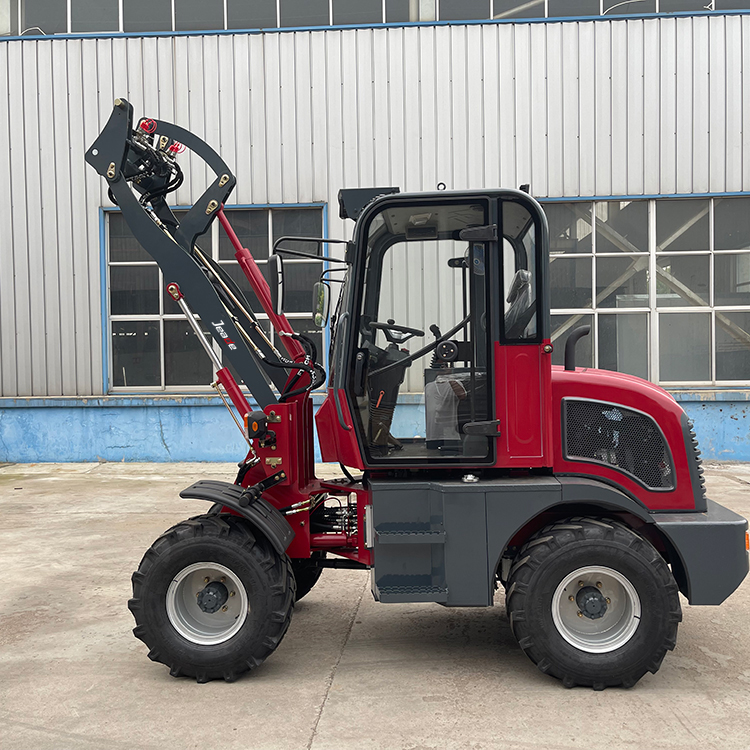

0.8 Ton(1763.70lb) Diesel Wheel Loader-ZL908

Rated Load:800kg(1763.70lb)

Lifting Height:2120mm(83.46in)

Bucket rated capacity:0.5 m³(17.66ft³)

Description

Performance	Rated load	800kg
	Overall weight	2800kg
	Rated bucket capacity	0.5m³
	Maximum tractive force	20KN
	Maximum breakout force	≥22KN
	Maximum grade ability	20º
	Maximum dump height	2120mm
	Maximum dump reach	1150mm
	Overall dimension (L×W×H)	4550×1570×2580mm
	Minimum turning radius	4406mm
Engine	Model	Changchai ZN390Q
	Type	lnline water cooling dry cylinder injection
	No. of cylinder-bore/stroke	3-90×95mm
	Rated power	25kw–2600r/min
	Maximum torque	102.8N.m
	Min fuel-consume ratio	≤265g/kw.h
Transmission system	Torque converter	265
	Gearbox mode	Power shift normally engaged straight gear
	Gear shift	2 forward shift 2reverse shift
Drive axles	Maximum speed	23km/h
	model	isuzu axle
	Wheel base (mm)	2120mm
	Wheel tread	1360mm
	Minimum ground clearance	240mm
hydraulic system	System working pressure	18MPa
	bucket lifting time	3.5s
	total time for a signle working cycle	7.4s
Brake system	Service brake	drum brake
Brake system	Parking brake	manual parking brake
Tyre	Service brake	20.5/70-16
	Front tyre pressure	0.4Mpa
	Rear tyre pressure	0.35Mpa
