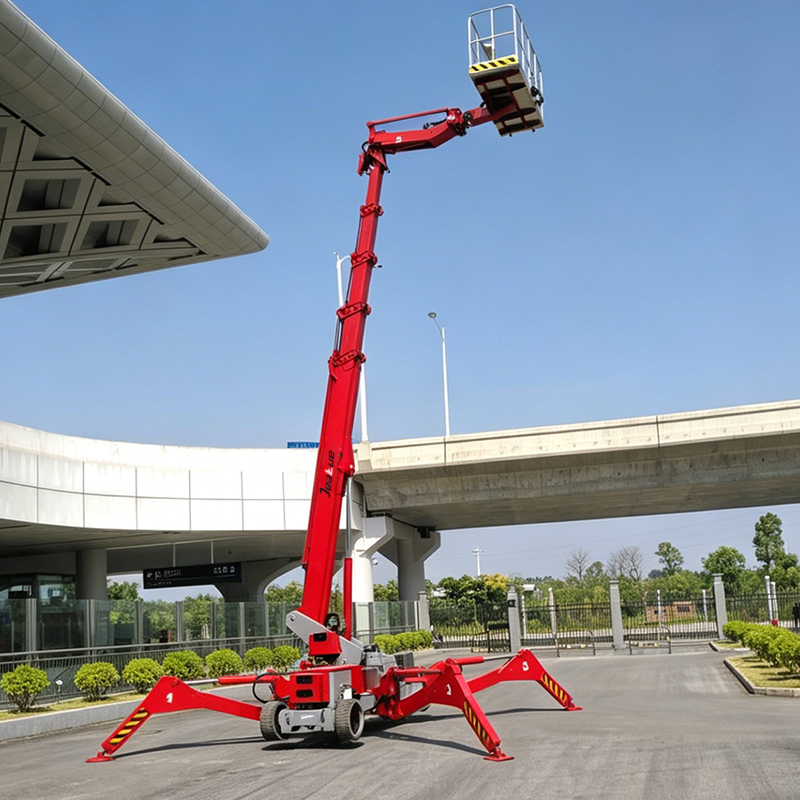

0.2 Ton Wheeled Spider Lift – R26
Maximum Working Height: 26.00m
Maximum Working Radius: 12.00m
Safe Working Load: 200kg
Overall Weight: 5950kg
Description
| Parameter | Value |
|---|---|
| Model: | R26 |
| Max. Working Height: | 26.00 m |
| Max. Platform Height: | 24.00 m |
| Load Capacity: | 200 kg |
| Horizontal Working Radius (200kg): | 12.00 m |
| Basket Rotation Angle: | 180° |
| Jib Rotation: | 120° |
| Turntable Rotation: | 360° non-continuous |
| Working Platform Size: | 1.2 × 0.8 × 1.1 m |
| Transport Length: | 6.80 m |
| Transport Width: | 0.92 m |
| Transport Height: | 2.00 m |
| Travel Speed: | 0–2 km/h |
| Working Slope: | 20% |
| Max. Climbing Gradient: | 30% |
| Total Weight: | 5950 kg |
| Standard Power: | Electric Motor + Diesel Engine |
