Description

Explore the FB55MHD

This groundbreaking development adopts world-leading high-voltage Lithium-ion power combined with advanced PMSM (Permanent Magnet Synchronous Motor) technology. These high-capacity forklifts ensure triple guarantees of high performance, long running time and safety while aligning with the current trend of green and sustainable development.
1.High Performance: High speed and high gradeability

High-voltage Li-ion batteries enable more power delivery to motors, improving acceleration and travel speeds for high-capacity trucks. PMSMs complement this with rapid response times, swiftly reaching required speeds and torques. This combination of PMSM and high voltage can provide stable and strong power output, which further gives high-capacity trucks excellent climbing capabilities ensuring that the forklift can cope with various applications with ease. The high-voltage model offers a 1.5-2 times performance improvement over the low-voltage model. Taking the 10-ton model as an example: 100% improvement in travel speed for high voltage models in laden and unladen conditions. The high-voltage model demonstrates a 45% faster lifting speed. 100% improvement in gradeability when unladen, 45% improvement when laden for high voltage models.

2.Energy Efficiency: extended runtime and fast charging

High-voltage Li-ion batteries have high energy density and can store more electrical energy within a compact volume. High-voltage systems consume less energy and provide longer battery running time comparing low-voltage systems. Notably, these high-voltage Li-ion batteries boast an impressive cycle life of up to 4000 cycles, ensuring long-term durability and minimizing the need for battery replacements. The PMSMs incorporate advanced control technology to optimize motor efficiency. Unlike traditional AC motors, PMSMs have higher energy conversion efficiency and reduce energy waste. This means that high-capacity trucks can work continuously for prolonged hours at lower costs. Equipped with fast charging capabilities, high-capacity trucks offer a remarkable charging experience. The high-voltage models are compatible with vehicle-grade charging stations and support 1C charging rating, allowing them to be fully charged in as fast as 1-1.2 hours. This minimizes downtime and maximizes productivity, making it ideal for multi-shift operations Lithium batteries present considerably lower charging costs than fuel expenses. The integration of high-voltage and PMSM technology achieves up to 15% greater electricity savings versus traditional lithium and AC technology configurations. This significantly reduces long-term energy consumption costs.

3.Safety Assured: Battery, motor protection, monitoring and mast buffering

Both high-voltage lithium batteries and PMSM employ multiple protective measures to ensure safe operations including overcharge protection, over-temperature monitoring, short-circuit protection, etc. minimizing the risk of potential hazards and maximizing operational safety. The central controlling module- VCU (Vehicle Control Unit) extends the safety of the high-voltage forklifts. VCU provides precise control and real-time monitoring of critical parameters to ensure the truck operates within safe limits. It also features turn speed control, which adjusts the forklift’s speed based on the turning angle, ensuring stability during turns. An over-speed alarm alerts the operator if the forklift exceeds the safe speed limit.* The high-capacity forklift mast is equipped with a hydraulic buffering system that ensures smooth lifting and lowering of loads. With controlled deceleration, the fork movement is smooth with no abrupt stops that could damage the load or cause operator discomfort. This feature enhances operational safety and prolongs the lifespan of the mast components.

4.Smart and reliable strategy for thermal management

The high-capacity trucks utilize three distinct cooling systems to ensure optimal performance and reliability. Specifically, two water cooling systems are employed for the motor and the battery, while an oil cooling system is dedicated to the hydraulics system. The water cooling systems provide superior cooling performance, preventing the truck from overheating even under the most demanding conditions or in the heat of summer. Water’s higher heat transfer capacity compared to air allows it to dissipate heat more efficiently from critical components like the motor and battery. This efficient heat dissipation helps maintain the battery temperature around 30~35℃, protecting these vital components from overheating and potential damage or failure. Consequently, this enhances the overall reliability and longevity of the high-capacity trucks. Additionally, water cooling systems typically operate with less noise compared to air cooling systems that rely on high-speed fans. This noise reduction is particularly beneficial in applications where a quieter operation is desirable, such as in urban areas or indoor facilities. The oil cooling system, on the other hand, is used for the hydraulics system. This system ensures that the hydraulic components remain within optimal temperature ranges, thereby maintaining their efficiency and preventing overheating. By effectively managing the temperature of the hydraulics system, the oil cooling system contributes to the smooth and reliable operation of the truck’s hydraulic functions.

Application

Compact and Mighty
FB55MHD offer more compact sizes while delivering enhanced performance over low-voltage forklift models. Their single front wheel design allows maneuverability in tighter spaces, making them ideal for industries like steel manufacturing, automotive, and heavy machinery production where space can be limited. With high-voltage Li-ion batteries, EFL403-553 can endure operating hours up to 6 hours. The 20-25% gradeability enables them to handle rough terrain and ramps with ease, making them suitable for outdoor applications with ease.

About the FB55MHD

The FB55MHD Series marks a breakthrough in heavy-duty electric forklift technology, bringing together JK’s high-voltage Li-ion system and advanced PMSM (Permanent Magnet Synchronous Motor) for unmatched efficiency and performance.

The high-voltage battery (309V/173Ah LFP) delivers up to 6 hours of continuous operation and supports 1C charging, achieving a full charge in just one hour. Its intelligent thermal management system integrates dual water cooling (for motor and battery) and oil cooling (for hydraulics), maintaining optimal component temperature and ensuring long-term reliability even under intense workloads.

Operators benefit from a spacious, ergonomic cabin with fingertip controls, adjustable suspension seating, and excellent visibility. Optional add-ons include radar and camera systems, air conditioning, LED lighting packages, and a full or half-cabin for harsh climates. With zero emissions, low maintenance, and up to 15% energy savings compared to traditional AC systems, the FB55MHD Series sets a new benchmark for sustainable heavy-duty material handling.

FAQs

What are the load capacities of the FB55MHD Series?

The series includes models with load capacities of 4.0, 5.0, and 5.5 tons, making it suitable for heavy-duty operations in logistics, manufacturing, and industrial environments that require high lifting power and endurance.

What type of battery powers the FB55MHD forklifts?

Each model is equipped with JK’s high-voltage LFP Li-ion battery (309V/173Ah) that delivers strong torque, long runtime, and supports rapid 1C charging — achieving a full charge in just one hour.

Can the FB55MHD operate in harsh or outdoor environments?

Yes. With an IPX4-rated chassis and IP67 protection for high-voltage components, along with dual water and oil cooling systems, the forklift ensures reliable performance even in wet, dusty, or high-temperature conditions.

What are the key advantages of the high-voltage Li-ion system?

The HV system provides 15% higher energy efficiency, smoother acceleration, and greater power output compared to traditional AC systems. It also reduces overall maintenance costs while offering zero emissions and consistent performance over time.

What options and ergonomic features are available for operators?

The FB55MHD Series includes fingertip controls, OPS safety system, LED lighting, and a comfortable suspension seat. Optional add-ons include radar or camera systems, telematics, air conditioning, and fully enclosed cabins for all-weather operation.

PRODUCT FEATURES

Load Capacity	5500Kg(12125.42lb)
Battery	309V228AH Lithium Battery
Controller/Motor	AC
Lift Height	3000mm(118.11in)
Turning Radius	3235mm(127.36in)
Fork Dimensions	60x150x1220mm(2.36×5.91×48.03in) (sxexl)
Steering Design	Hydraulic
Tyre Type	Pneumatic tyre
Service Weight	8950Kg(19731.36lb)
Product Color	Ivory/Ochre/Customization

Four Wheel High-Voltage Lithium Battery Forklift

Suspended Overhead Guard JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

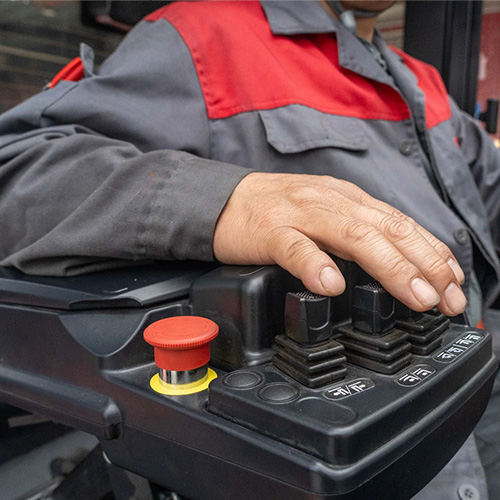

Operating Console

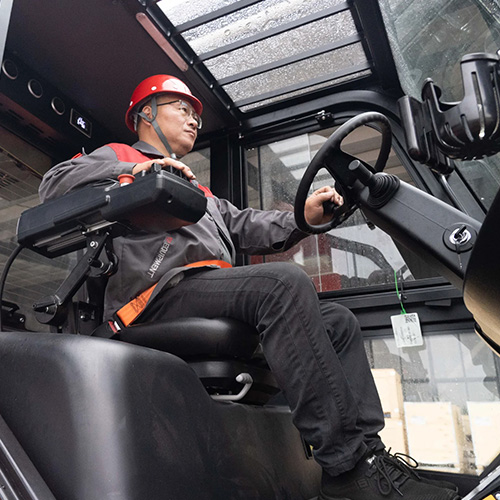

Spacious Operating Space

High-Strength Mast

Super Powerful & Eco-Friendly JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

◎ Overall performance comparable to internal combustion forklifts of the same class: high-performance drive motor and pump motor deliver strong power, matching the performance of IC forklifts (Travel speed: 25/26 km/h empty/full load; Gradeability: 30%/24%; Lifting speed: 0.51/0.53 m/s).JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

◎ Optimized power distribution: single motor for travel, dual motors for lifting, steering, and braking.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

◎ Zero emissions: clean power, zero emissions, and environmentally friendly.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

Energy-Saving & High Efficiency JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

◎ Significant energy savings: automotive-grade 309V high-voltage platform, permanent magnet synchronous motor, and lithium iron phosphate battery system deliver outstanding energy efficiency.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

◎ Easy steering: full-hydraulic priority steering with fixed-displacement system and dynamic load feedback ensures light and flexible steering.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

◎ High maneuverability: heavy-duty forklift steering axle with large steering angle, minimum turning radius as small as 3235 mm.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

◎ Efficient operation: low-center-of-gravity and lightweight design concept with hydraulic fork positioner, achieving higher operational efficiency.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

Appearance

◎ Adopts a newly designed family-style look with a tough and robust appearance, featuring clean and smooth lines for a refined and stable overall design.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

Safe & Reliable

◎ High structural strength: key components such as frame and mast undergo CAE finite element analysis and strength optimization.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

◎ High protection level: automotive-grade motor and controller with IP67 protection rating, meeting all-weather operation requirements.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

◎ High safety level: heavy-duty forklift drive axle, steering axle, and automotive-grade high-voltage lithium battery standard box ensure safety, stability, and proven reliability.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

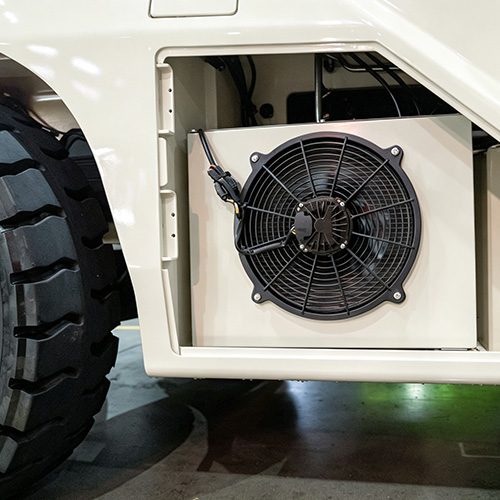

◎ Superior cooling: dual water-cooling system for motor and battery, suitable for various working conditions; keeps the battery at optimal operating temperature for higher efficiency, slower degradation, and longer service life.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

Comfortable & Convenient

◎ Excellent visibility: wide-view mast with lowering buffer ensures safer and more comfortable operation.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

◎ Easy maintenance: seat and hood can be tilted for large maintenance space, making servicing more convenient.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD

◎ Ergonomic design: standard suspended overhead guard with excellent shock absorption; internal instrument layout designed ergonomically for comfortable operation.JEAKUE 5.5 Ton High-voltage Lithium Battery Electric Forklift-55MHD
